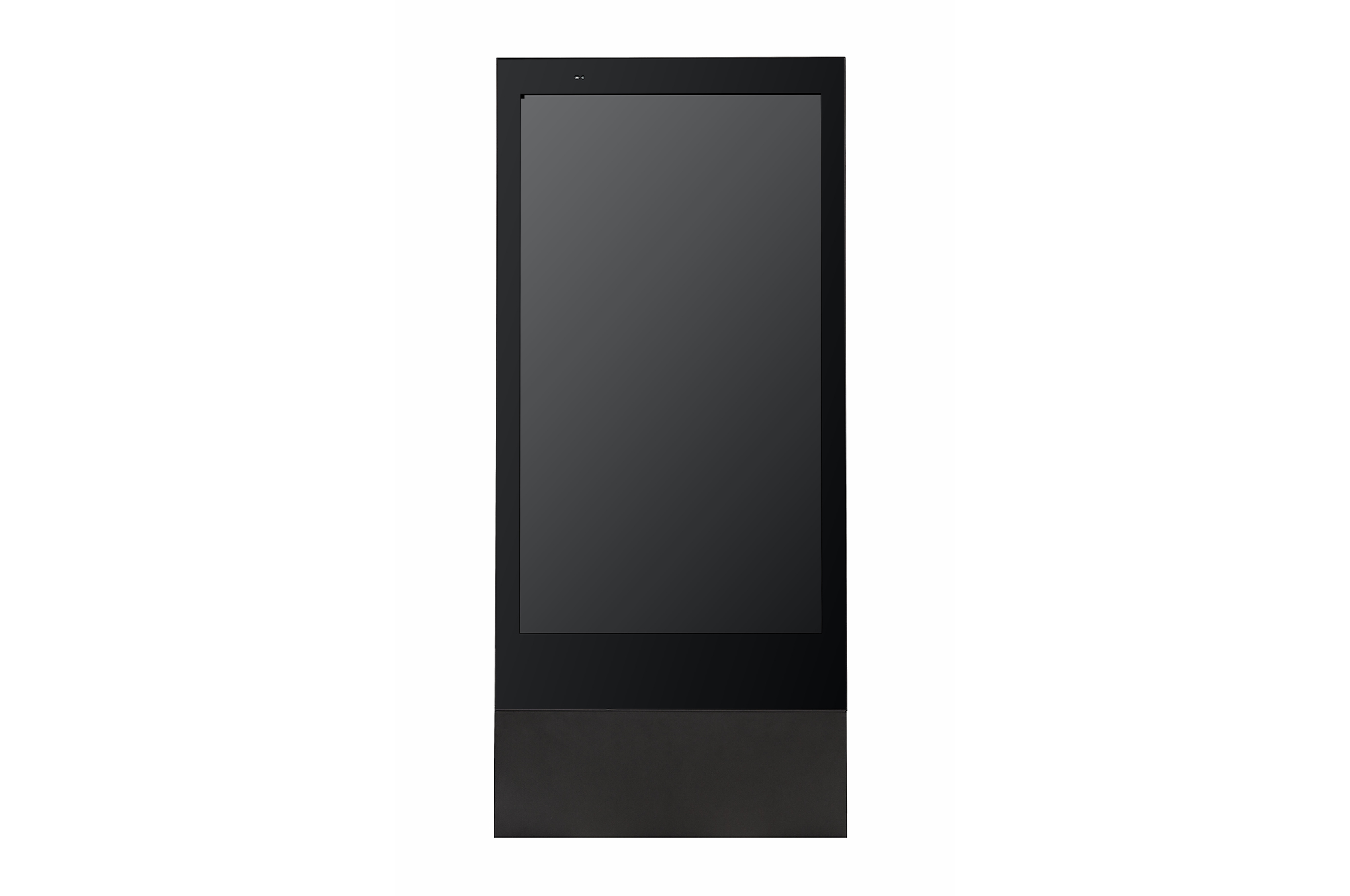

Full Outdoor LED Signage
75inches
- Outdoor LED Signage
Key Feature
- Brightness(Typ.) : 3,500 cd/m²
- Operating Temperature : -30°C to 50 °C
- IP65 Design
- Interface : HDMI / DP / DVI / RJ45 / RS232C / SD Card / USB3.0 / External speaker out
- Outdoor LED Signage
Outstanding Visibility
with Advanced Reliability
* All images in this page are for illustrative purposes only.
High Visibility
Under Strong Sunlight
With an impressive brightness of 3,500 nits (Typ.), this full outdoor LED display ensures clear and vibrant content that captures the attention of passersby, making it ideal for outdoor visibility. Additionally, its excellent clarity allows information to be easily viewed, even by those wearing polarized sunglasses.
* Stand is optional accessory.
Advanced Local Dimming
The backlighting in specific areas of the screen can be controlled to increase contrast and provide a clearer image.
Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents.
* Within 178 degree
Anti-reflection
Thanks to anti-reflection coating, 75XE3C has low interference between reflection of external light & back light.
Smart Brightness Control
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.
Low Power Consumption Using The M+ Panel
The M+ panel can offer high energy efficiency and cost savings as decreasing power consumption by approx.
* M+ IPS reduced approx. by 35% BLU Power consumption (IEC62087, 10 min) compared to RGB IPS, tested under same brightness (@fullwhite, 400 nit)
** Specific features can differ from circumstances.
Dust & Humidity Protection Designed with IP56 Rating
Conformal Coating* protect the circuit board, power board against dust, iron powder, humidity, etc.
* Thin protective films/breathing membranes that filter water vapor and solid debris
Wide Range of Operating Temperature
75XE3C can be used under a wide range of operating temperatures from -30°C to +50°C.
Enhanced Thermal Management
Environmentally sealed structure for water-resistant and protection against brake dust. 75XE3C has thermal management solution regarding heat from the LCD, Circuit / Powerboard and Solarloading. Totally self-contained and suitable for outdoor use without air filter.
9.5 mm Protective Glass
Designed to protect panel from impacts and vandalism for outdoor use.
* P2A tested
webOS Smart Platform
Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app develoment tools.
Web Monitoring
The LG Control Manager*, the embedded web monitoring program, allows a variety of parameters to be diagnosed in real time such as temperature, ambient light, and gyro sensors. It can be easily controlled at all times.
* Enabled by wired LAN connection
Optional Stand
Optional stand to allow panel to stand freely and facilitate easy cable management.
Find a Variety of Business Stories!
Tech Spec
| Panel | Screen Size | 75" Class (74.52 inch Measured Diagonal) |
| Panel Technology | IPS | |
| Back Light Type | Direct | |
| Aspect Ratio | 16 : 9 | |
| Native Resolution | 3,840 × 2,160 (UHD), M+ | |
| Pixels (H x V x 3) | M+ (RGBW) | |
| Refresh Rate | 60Hz | |
| Brightness | 3,000 cd/m2 (Typ.), 2,400 cd/m2 (Min.) through Front Protective Glass | |
| Contrast Ratio | 1,200 : 1 | |
| Dynamic CR | 500,000 : 1 | |
| Color gamut | 72% | |
| Color gamut | 72% | |
| Viewing Angle | (H x V) 178 × 178 | |
| Color Depth | 1.07 Billon (10 bit) | |
| Response Time | 8 ms (G to G BW) (Typ.) | |
| Surface Treatment | AGLR (Haze 3%), QWP | |
| Lifetime | 50,000 Hrs | |
| Operation Hours | 24 Hrs | |
| Orientation | Portrait only | |
| QWP (Quarter Wave Plate) | Yes |
