XR LED Screen
XR LED screens deliver ultra-high resolution and seamless visuals, perfect for virtual production and immersive environments. With advanced technology, they create realistic scenes for films, broadcasts, and live events, offering unmatched flexibility and performance for cutting-edge virtual experiences.
Product Key Features
Technical Specs
| Model | 1.5 | 1.95 | 2.31 | 2.6 |
|---|---|---|---|---|
| Pixel Pitch(mm) | 1.5 | 1.95 | 2.31 | 2.6 |
| Pixel Density(pixels/m2) | 409,600 | 262,985 | 187,403 | 147,929 |
| LED type | SMD1212 | SMD1212 | SMD1212 | SMD1212 |
| Module Dimension | 250 x 250mm 9.85” x 9.85” | 250 x 250mm 9.85” x 9.85” | 250 x 250mm 9.85” x 9.85” | 250 x 250mm 9.85” x 9.85” |
| Module Resolution | 160 x 160 | 128 x 128 | 108 x108 | 96 x96 |
| Panel Dimension | 500 x 500 x 68mm 19.7” x 19.7” x 2.68” | 500 x 500 x 68mm 19.7” x 19.7” x 2.68” | 500 x 500 x 68mm 19.7” x 19.7” x 2.68” | 500 x 500 x 68mm 19.7” x 19.7” x 2.68” |
| Panel Resolution | 320 x 320 | 256 x 256 | 216 x216 | 192 x192 |
| Panel Type and Material | Die-Casting Aluminium | Die-Casting Aluminium | Die-Casting Aluminium | Die-Casting Aluminium |
| Panel Weight | 8.2 kg (18 lbs) | 8.2 kg (18 lbs) | 8.2 kg (18 lbs) | 8.2 kg (18 lbs) |
| Color space | >98% DCI-P3, >86% REC20020 | >98% DCI-P3, >86% REC20020 | >98% DCI-P3, >86% REC20020 | >98% DCI-P3, >86% REC20020 |
| Typical Brightness(nits) | ≥1000 nits | ≥1000 nits | ≥1500 nits | ≥1500 nits |
| Viewing Angle | H160°/V160° | H160°/V160° | H160°/V160° | H160°/V160° |
| Multiplexing(scan) | 8 | 8 | 9 | 8 |
| Refresh Rate | 7680Hz | 7680Hz | 7680Hz | 7680Hz |
| Controller System | Brompton/NOVASTAR | Brompton/NOVASTAR | Brompton/NOVASTAR | Brompton/NOVASTAR |
| Operating Power | 100 - 240 V, 50 - 60 Hz | 100 - 240 V, 50 - 60 Hz | 100 - 240 V, 50 - 60 Hz | 100 - 240 V, 50 - 60 Hz |
| Max. Power Consumption (W/m2） | 720 | 720 | 732 | 715 |
| Avg. Power Consumption (W/m2） | 230 | 230 | 234 | 229 |
| Serviceability | Front&Rear | Front&Rear | Front&Rear | Front&Rear |
| IP Rating | P41(Indoor) | P41(Indoor) | P41(Indoor) | P41(Indoor) |
| Operating Temp/Humidity | -20°~ 50°C, 10~90% RH | -20°~ 50°C, 10~90% RH | -20°~ 50°C, 10~90% RH | -20°~ 50°C, 10~90% RH |
| Storage Temp/Humidity | -40°~ 60°C, 10~90% RH | -40°~ 60°C, 10~90% RH | -40°~ 60°C, 10~90% RH | -40°~ 60°C, 10~90% RH |
| LEDs lifespan | 75000 hours | 75000 hours | 75000 hours | 75000 hours |
| Curving( Concave) | Max 5° | Max 5° | Max 5° | Max 5° |
| Certificates | FCC, ETL, TUV-CE，RoHs | FCC, ETL, TUV-CE，RoHs | FCC, ETL, TUV-CE，RoHs | FCC, ETL, TUV-CE，RoHs |
Note:The specifications are subject to change without prior notice
Let‘s talk about your projects.
Share some details about your vision and requirements, and we can explore how our customized LED solutions can bring your ideas to life. Whether it’s design flexibility, installation challenges, or performance goals, we’re here to discuss and deliver the perfect solution tailored to your needs.
What unique features do XR LED screens have compared to traditional LED screens?
XR LED screens are specifically engineered to meet the advanced demands of virtual production, extended reality (XR), and immersive environments. Compared to traditional LED screens, they offer several unique features:
XR LED screens
Color Accuracy and Consistency:
Advanced Calibration: They utilize sophisticated color calibration techniques to achieve exact color representation, which is crucial for content that requires color matching and grading.
Wide Color Gamut: Support for a broader spectrum of colors ensures more vibrant and true-to-life images.
XR LED screens
Low Latency Performance:
Responsiveness: Designed with minimal input lag to synchronize perfectly with live cameras and motion tracking systems, preventing motion blur and lag in dynamic scenes.
Smooth Interaction: Essential for interactive applications where immediate feedback enhances the user experience.
XR LED screens
Anti-Moiré and Matte Finishes:
Improved Visuals on Camera: Special surface treatments reduce moiré patterns and reflections when filmed, resulting in cleaner images.
Matte Glue-On Surface: Minimizes glare and enhances image quality, especially under studio lighting.
How do XR LED screens achieve seamless visual effects?
XR LED screens achieve seamless visual effects by meticulously integrating precise hardware engineering with advanced software solutions. The key factors include:
Physical Alignment: Precision in panel manufacturing and assembly ensures that there are no visible gaps or misalignments.
Visual Uniformity: Advanced calibration techniques guarantee consistent brightness and color across all panels.
Content Synchronization: Sophisticated control systems and synchronization technologies ensure that the content is displayed uniformly and in sync, eliminating visual artifacts.
Services
How do XR LED screens enhance virtual production effects?
XR LED screens elevate virtual production by merging the digital and physical worlds in a cohesive and efficient manner. They offer:
Real-Time Integration
Allowing for immediate visualization and capture of virtual elements alongside live action.
Creative Freedom
Enabling quick changes and experimentation with environments and effects.
Enhanced Realism
Providing high-quality visuals that improve the believability of scenes.
Workflow Efficiency
Streamlining production processes and reducing the need for extensive post-production work.
Applications
What are the applications of XR LED screens in film, broadcasting, TV studios, and live events?
.01
Film & Television
Enhance production quality with real-time virtual environments, reducing post-production needs.
.02

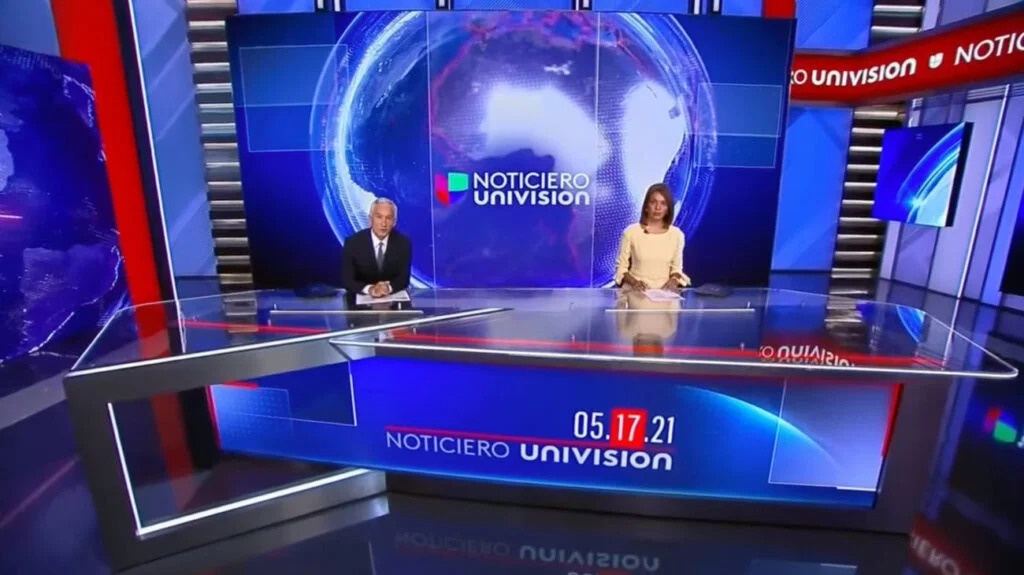

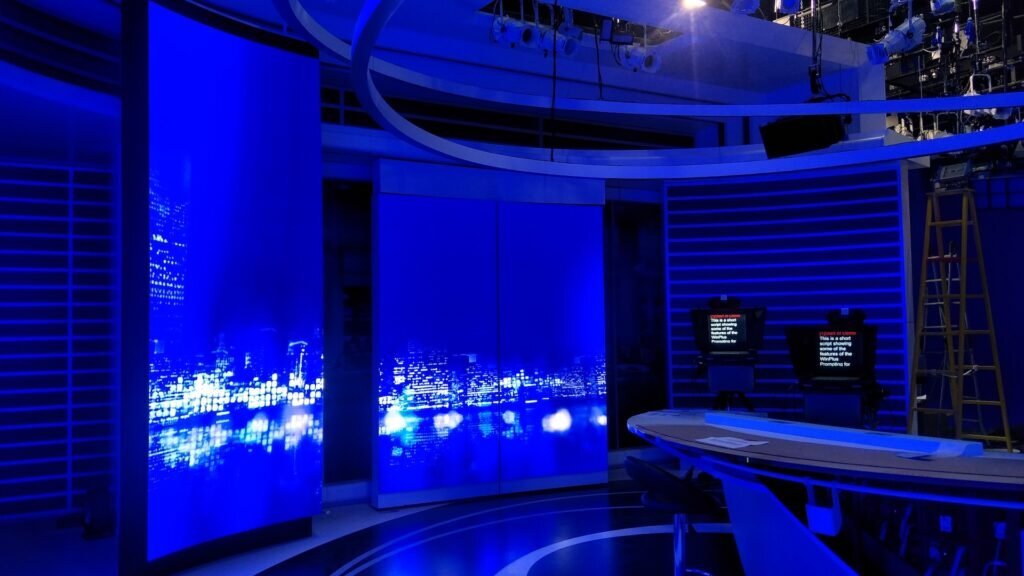

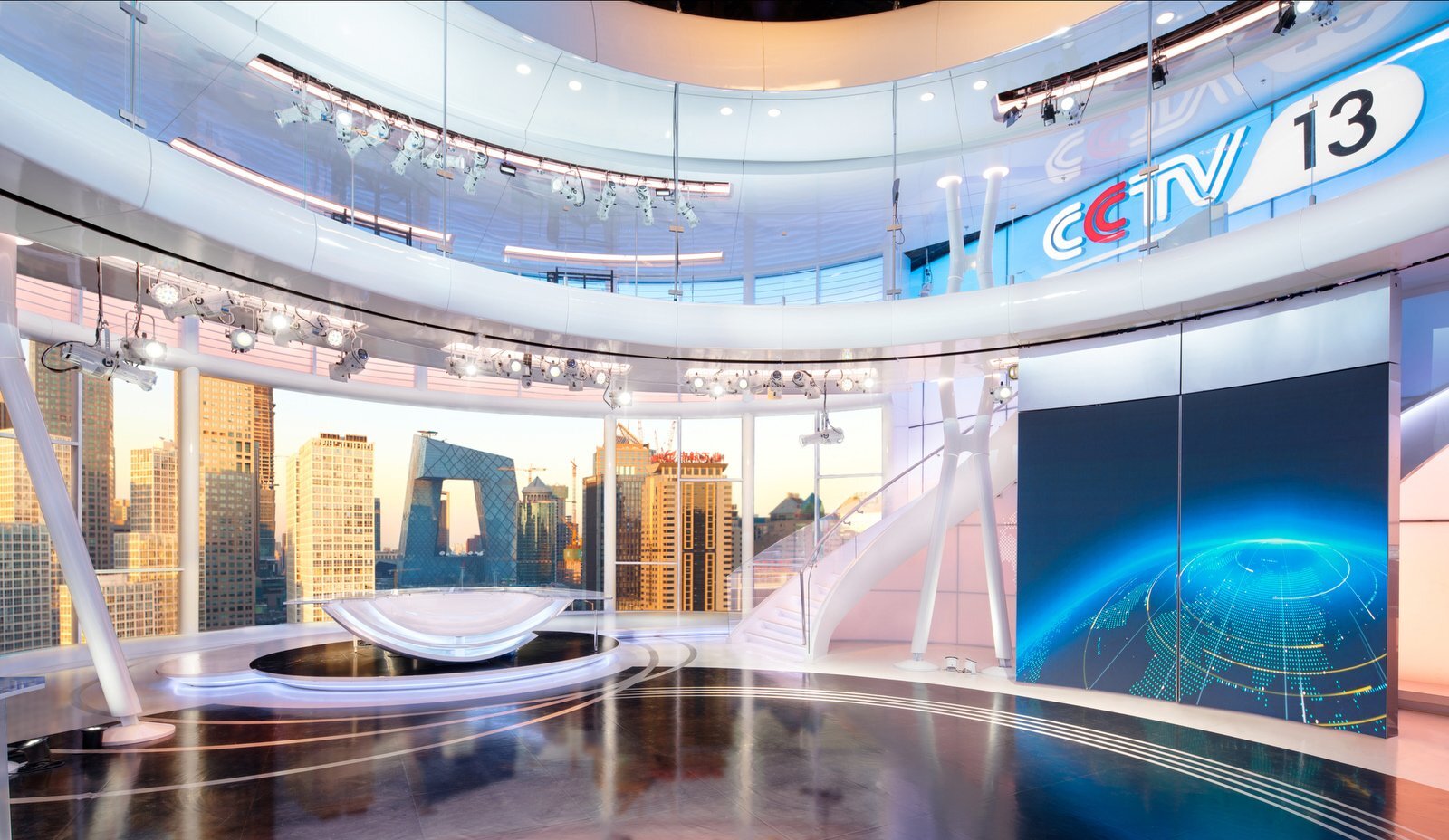

Broadcasting
Create dynamic and interactive sets that engage viewers and streamline production workflows.
.03
Live Events
Offer immersive experiences that captivate audiences, whether in person or remotely.
Applications
How do XR LED screens achieve perfect synchronization with cameras and other studio equipment?
XR LED screens synchronize perfectly with cameras and other studio equipment by:
Is the installation process complex, and what professional support is needed?
Complexity
The installation is complex due to advanced technology, customization, mechanical alignment, integration, and safety requirements.
Professional Support Needed
Technical specialists, engineers, software professionals, and trained operators are essential for successful installation and operation.
Key Actions
Engage experienced professionals, plan thoroughly, prioritize safety, and invest in training and support for optimal results.
