Durway is a pioneering LED display solutions company specializing in creative and customized LED screens. With over 30 years of experience, Durway delivers innovative, high-quality, and flexible LED display systems tailored to diverse industries globally. Powered by advanced technology, exceptional design, and customer-focused service, we transform creative concepts into vibrant visual realities.

Three Versions

Flexible led screen

Our flexible LED screens come in three versions, offering unmatched versatility, vibrant visuals, and tailored solutions for unique installations.

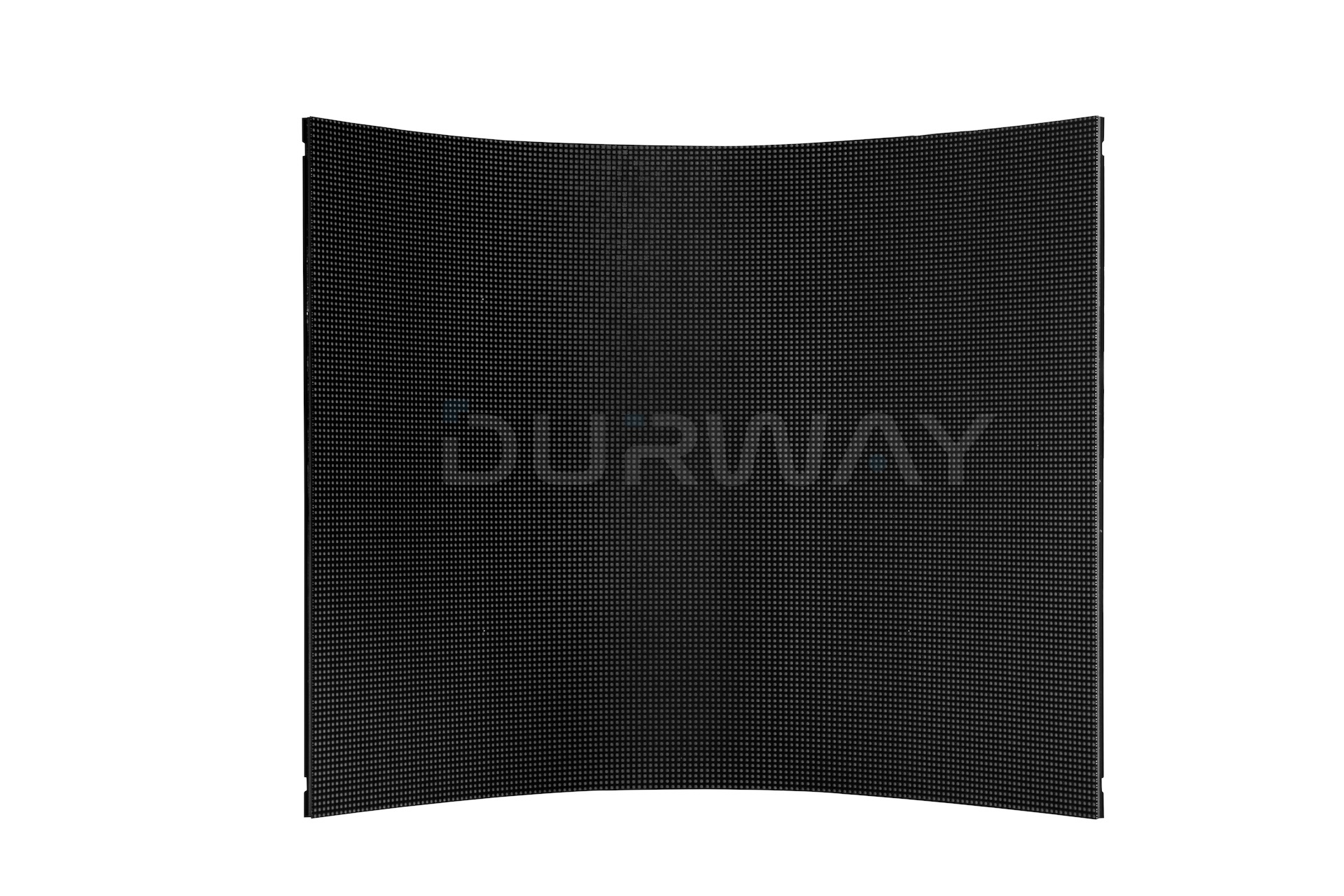

Flexible LED Screen
400x300mm

It offers exceptional flexibility for both concave and convex installations, delivering high-definition displays with superior quality. Ideal for premium applications, including broadcasting studios and professional environments.

Durway System Corp Flexible LED Screen 288x144mm, ideal for artistic designs and intricate lighting displays, offering vibrant visuals for creative installations

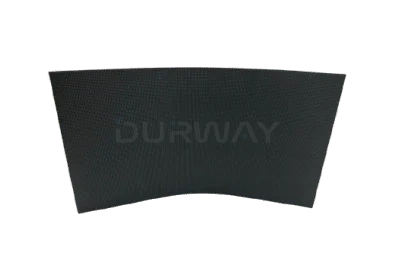

Flexible LED Screen
288x144mm

Perfect for artistic creations and unique designs, this module enhances creativity with stunning visual effects. Its compact size allows for intricate lighting displays, making it a favorite for art installations.

Durway System Corp Flexible LED Screen 300x168.75mm, cost-effective and durable, offering reliable performance with long-lasting protection for diverse projects

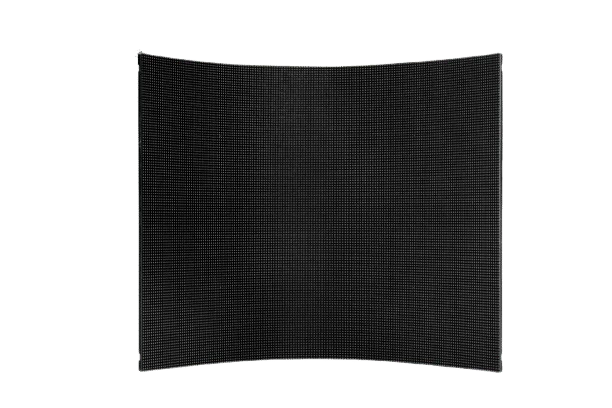

Flexible LED Screen
300x168.75mm

This module prioritizes cost efficiency without compromising durability. The surface features excellent protection, ensuring longevity and reliable performance for various projects.

Product Features

What is the flexible led screen?

A Flexible LED screen refers to an advanced display technology that combines high resolution, vivid color performance, and lightweight modular design with the ability to adapt to various shapes and curves. These screens are ultra-thin, durable, and offer both front and rear maintenance options, making them ideal for creative and complex installations such as curved walls, artistic displays, or unconventional environments. Features often include a wide color gamut, high refresh rates, and energy-efficient systems, ensuring excellent visual output and long-term reliability​

Safety

Low-voltage remote power ensures user safety, making the screen harmless and reliable in various environments.

Flexible Design

Flexible Design

Bendable, modular design supports creative shapes like curves, cylinders, waves, and right-angled installations.

Lightweight

Ultra-thin, lightweight design ensures easy transportation, installation, and adaptability for space-limited applications.

High Resolution

Supports HD quality with 98% DCI-P3 color gamut, seamless splicing, and fine pixel pitch as low as 1.25mm.

Easy Installation

Magnetic mounting enables front and rear maintenance, offering user-friendly and quick setup without professionals.

Durability

Long-lasting materials with low power consumption ensure 5-8 years of reliable, energy-saving operation.

What shape can it achieve?

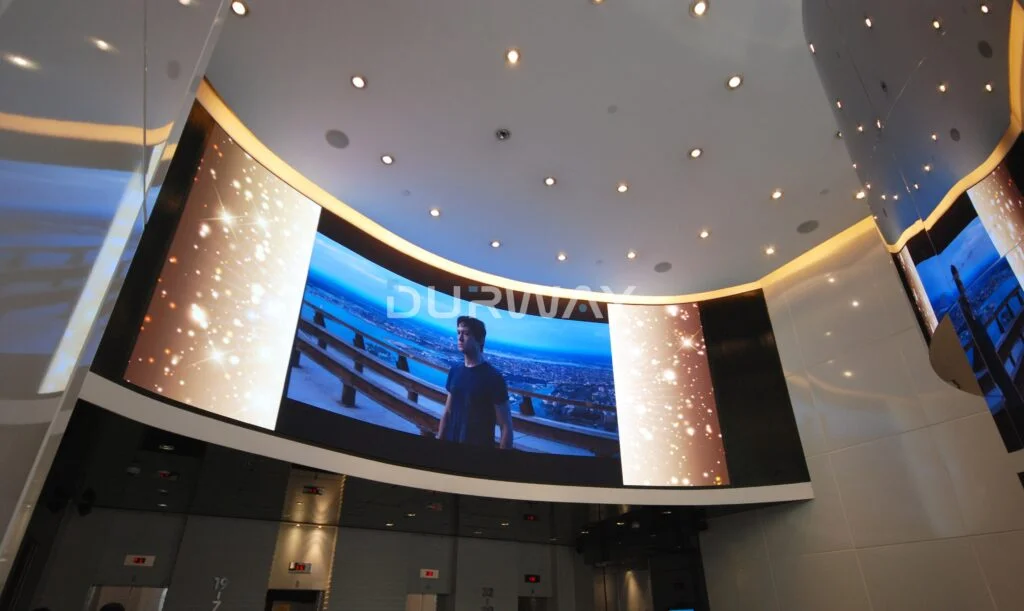

Concave led screen

A concave LED screen offers immersive visuals, seamless curvature, and high-resolution display, perfect for dynamic and creative installations.

Convex LED Screen

A convex LED screen delivers stunning visuals with an outward curve, ideal for eye-catching, creative, and versatile display solutions.

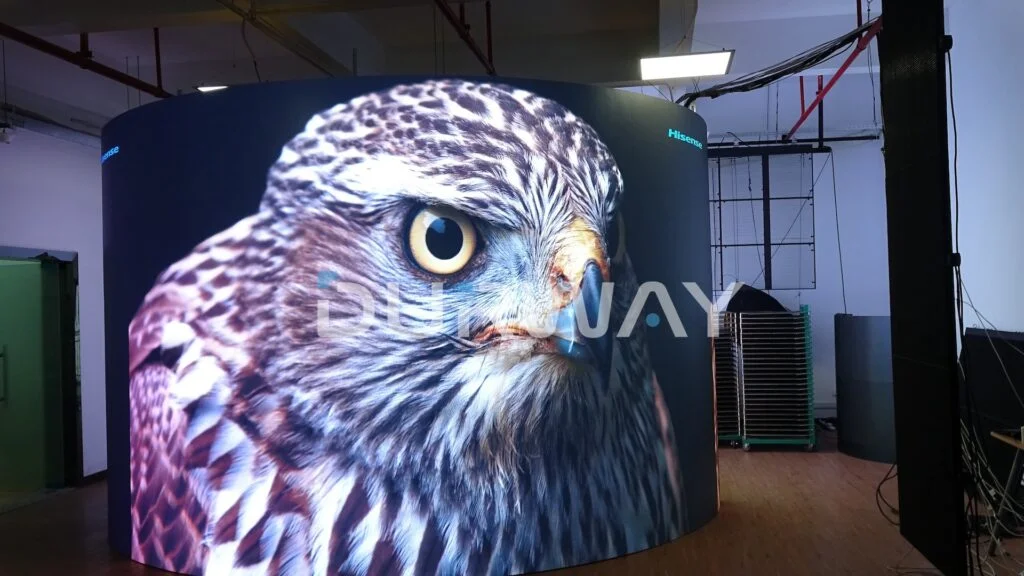

LED Cylinder

An LED cylinder screen provides 360-degree immersive visuals, combining high resolution and seamless design for dynamic and engaging displays.

What is the difference between
flexible and traditional led screen?

There are 6 main differences

Flexible LED: Can be curved, bent, or shaped to fit unconventional surfaces or installations.

Traditional LED: Rigid, designed for flat surfaces and limited to standard rectangular or square shapes.

Flexible LED: Highly customizable in shape and size, ideal for creative designs and irregular installations.

Traditional LED: Less customizable, typically designed in fixed shapes and sizes.

Flexible LED: Lightweight and ultra-thin, making it easier to handle, install, and transport.

Traditional LED: Heavier and bulkier, requiring more support structures for installation.

Flexible LED: More prone to damage if bent beyond its limit, but generally more adaptable to different environments.

Traditional LED: Generally more durable for standard, flat installations but less adaptable to extreme shapes or environments.

Flexible LED: Easier to install on curved or irregular surfaces, often simpler maintenance with modular designs.

Traditional LED: Requires flat, stable surfaces for installation and may have more complex maintenance setups.

Services

What are the services?

Flexible LED display projects are complex ventures, and we offer clients a comprehensive range of integrated services.

Installation

We provide on-site assessment and professional installation for optimal setup and performance.

Customer Training

Customer Training

We offer comprehensive training to ensure clients effectively use and maintain their LED displays.

Custom Services

Tailored solutions to meet specific client needs, ensuring a perfect fit for each project.

Annual Inspections

We conduct yearly maintenance checks to ensure your systems are operating efficiently and reliably.

24/7 Online Support

Our dedicated team offers round-the-clock online support, ensuring quick resolutions for any concerns.

After-Sales Repair

We provide after-sales repairs, guaranteeing optimal performance and longevity of your products.

Perfect for a Wide Range of Applications

Flexible LED

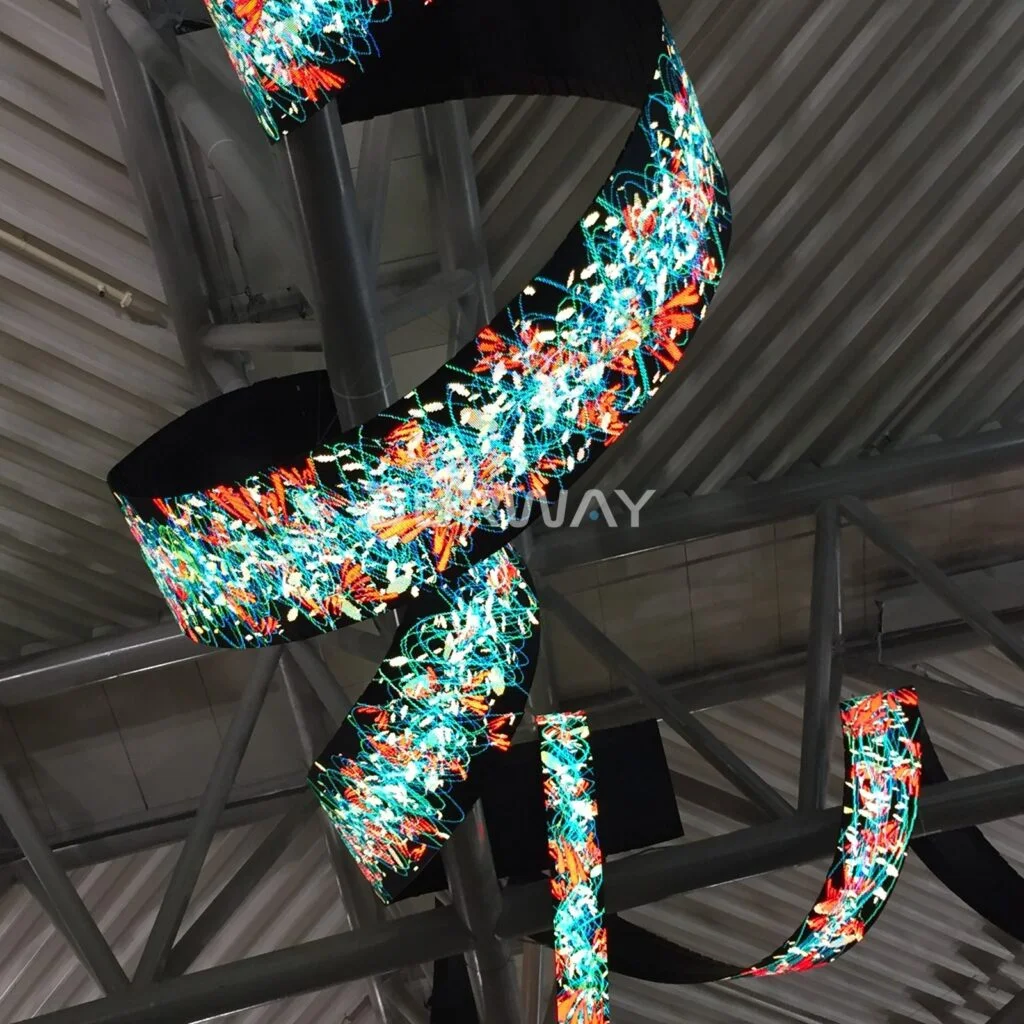

Creative Displays

Suitable for artistic installations, technology exhibition halls, and creative projects in commercial complexes.

Flexible LED

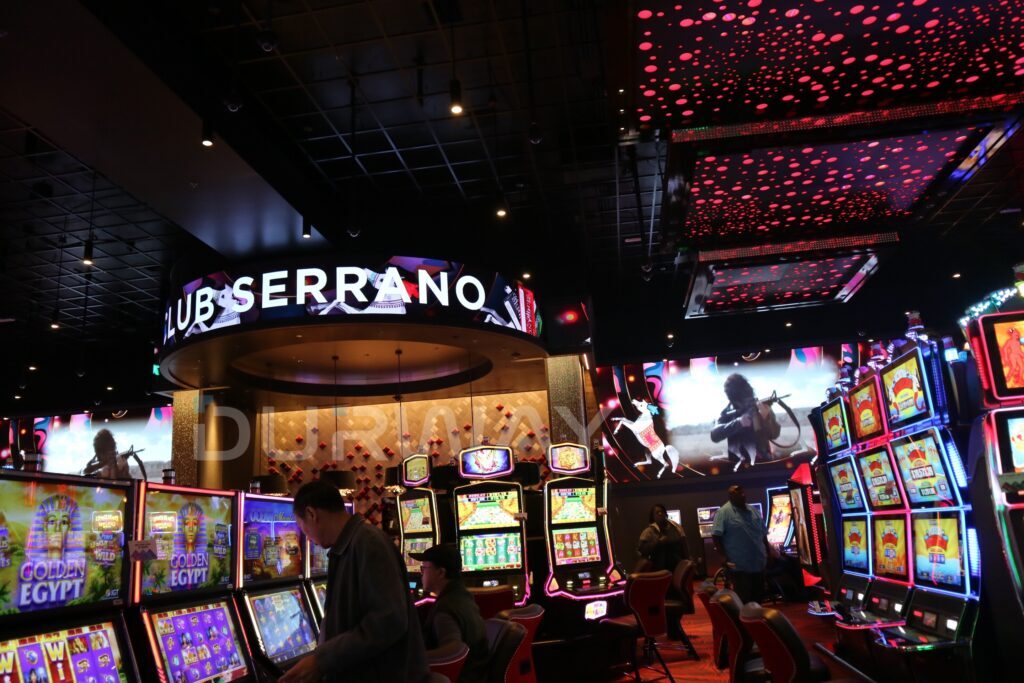

Advertising

Ideal for retail stores, airports, shopping malls, and other crowded places to create highly attractive advertising media.

Flexible LED

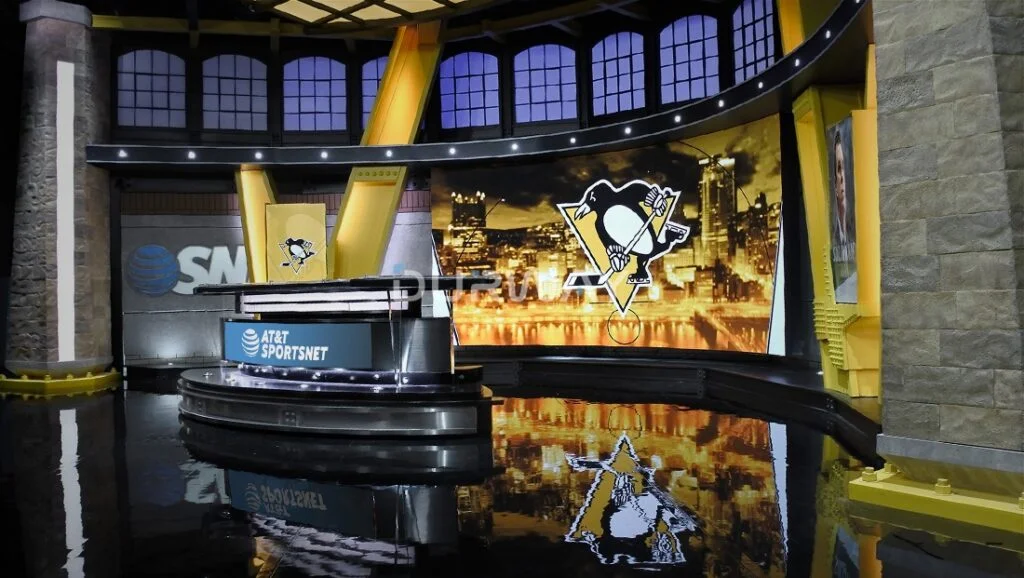

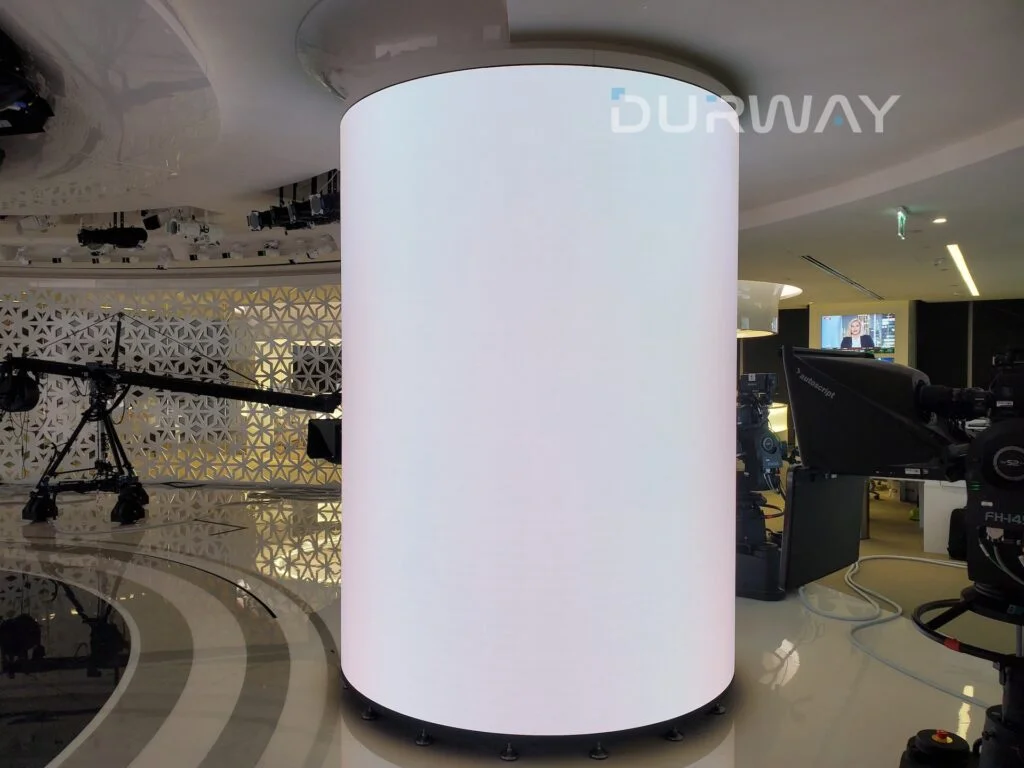

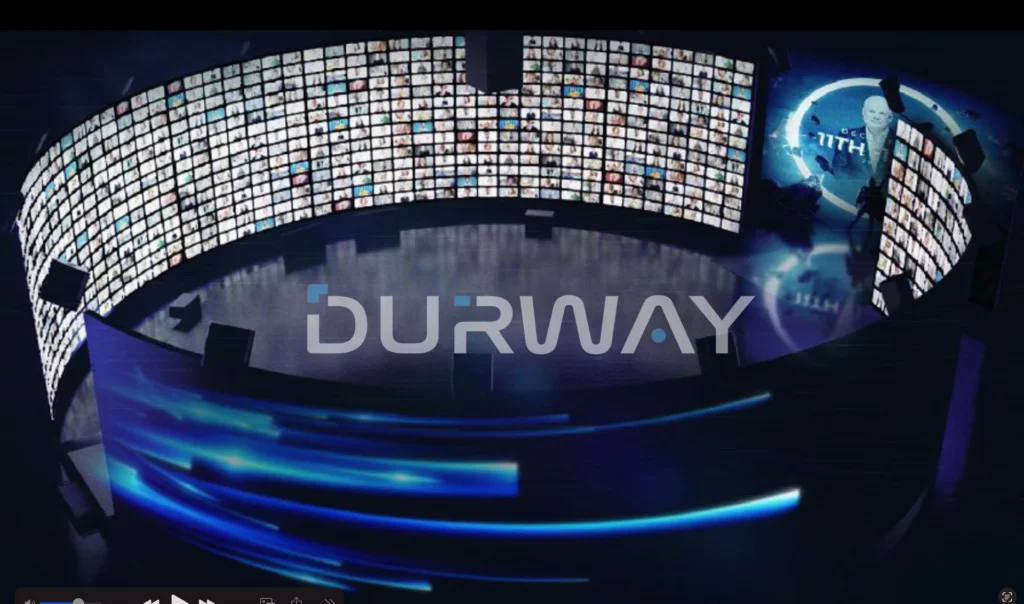

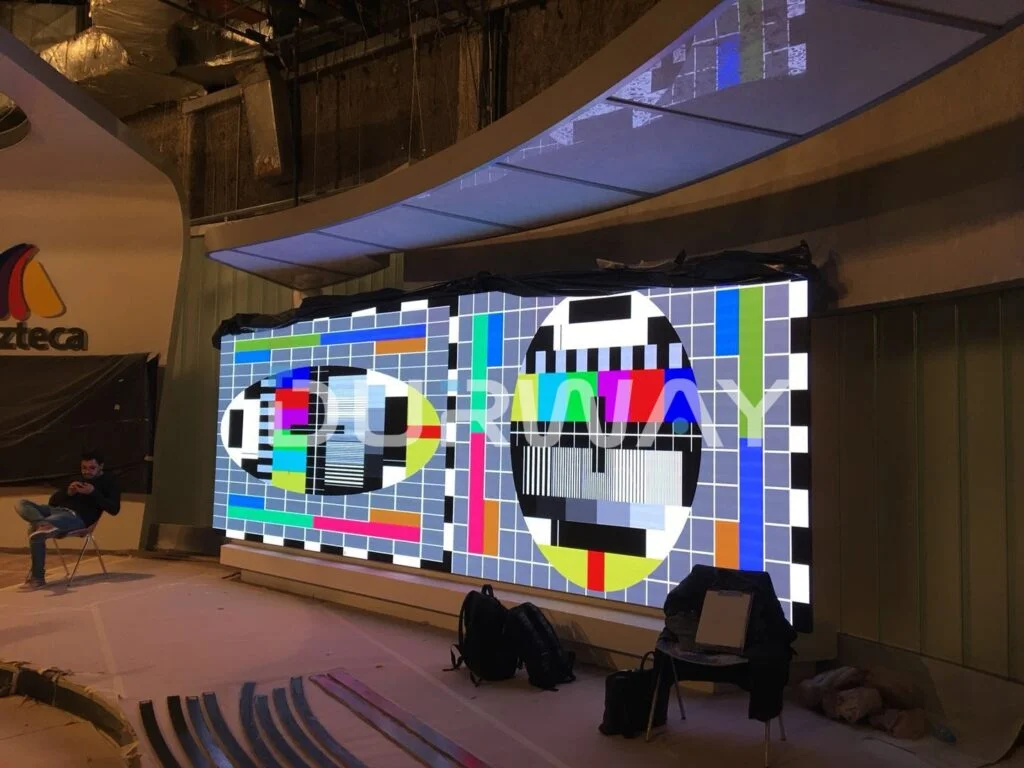

Television Stations

Require screens that are lightweight, easy to install, with good performance and strong color reproduction.

Flexible LED
Irregular Installations

Examples include curved screens, cylindrical screens, wave-shaped screens, etc., breaking the limitations of traditional displays.

Specifications

ParameterUnitAFP1.2AFP1.5AFP1.6AFP1.9AFP2.5
LED package SMD1010 Black SMD1010 Black SMD1010 Black SMD1010 Black SMD1010 Black
Pixel pitch mm1.25 1.5625 1.6671.9232.5
Module resolution 320X240256×192 240×180 208×156 160×120
Pixel density dot/m² 640000 409600 359856270422 160000
Module size mm400x300x7.6 400x300x7.6 400x300x7.6 400x300x7.6 400x300x7.6
Module weight kg/tile 1.5631.563 1.563 1.41.45
Maintenance methodFront access Front access Front access Front access Front access
Brightnessnit400-600 500-800500-800500-800500-800
Color temperature K2600-9500
adjustable
2600-9500
adjustable
2600-9500
adjustable
2600-9500
adjustable
2600-9500
adjustable
Horizontal viewing angle ° 160160160160160
Vertical viewing angle °160160160160160
Optimum line of sightm45679
Contrast5000 :1 5000 :1 5000 :1 5000 :1 5000 :1
Driving ICoptionalMBIMBIMBIMBIMBI
Module power
consumption
W30W60W60W60W60W
AC input voltageVAC86~264 86~264 86~264 86~264 86~264
Maximum Power
distribution
W/m² 480480480480480
Average power
consumption
W/m²135135135135135
Maximum heat
dissipation
BTU/HR/m² 30002500250025002500
Average heat
dissipation
BTU/HR/m² 840 700700700700
Gray level 65536 (16bit) 65536 (16bit) 65536 (16bit) 65536 (16bit) 65536 (16bit)
Refresh rateHz1920/38401920/38401920/38401920/38401920/3840
Frame frequency Hz59.94 ,60,12059.94 ,60,12059.94 ,60,12059.94 ,60,12059.94 ,60,120
Interface Type HDMI,DVI,SDI,DP HDMI,DVI,SDI,DPHDMI,DVI,SDI,DPHDMI,DVI,SDI,DPHDMI,DVI,SDI,DP
Signal transmission
distance
mCAT6E:<100m
Multic mode
fiber≤500m
Single mode
fiber≤10Km
CAT6E:<100m
Multic mode
fiber≤500m
Single mode
fiber≤10Km
CAT6E:<100m
Multic mode
fiber≤500m
Single mode
fiber≤10Km
CAT6E:<100m
Multic mode
fiber≤500m
Single mode
fiber≤10Km
CAT6E:<100m
Multic mode
fiber≤500m
Single mode
fiber≤10Km
Storage temperature-40℃~60℃-40℃~60℃-40℃~60℃-40℃~60℃-40℃~60℃
Operating temperature-10℃~40℃-10℃~40℃-10℃~40℃-10℃~40℃-10℃~40℃
Storage humidity%RH10%~90%10%~90%10%~90% 10%~90% 10%~90%
Working humidity %RH 10%~90% 10%~90% 10%~90% 10%~90% 10%~90%
Protection level IP30 IndoorIP30 IndoorIP30 IndoorIP30 IndoorIP30 Indoor
LED lifespan
(75% brightness)
Hrs7500075000750007500075000
MTBFHrs5000 5000 5000 5000 5000
CertificationTUV-
CE,ETL,FCC
TUV-
CE,ETL,FCC
TUV-
CE,ETL,FCC
TUV-
CE,ETL,FCC
TUV-
CE,ETL,FCC
ParameterUnitAFP3AFP4AFP6
Pixel compositionSMD2020 BlackSMD2020 BlackSMD2020 Black
Pixel pitch mm346
Module resolution 96*4872*3648*24
Pixel density dot/m² 111111 6250027778
Module sizemm288x144x7.6288x144x7.6288x144x7.6
Module weight kg0.34 0.28 0.31
The radius of curvature m>0.36 >0.36 >0.36
Material of bottom case RubberRubberRubber
Maintenance method Front access Front access Front access
Brightnessnit800-1000 800-1000 800-1000
Color temperature K2600-9500 Adjustable 2600-9500 Adjustable 2600-9500 Adjustable
Horizontal viewing angle ° 160 160 160
Vertical viewing angle ° 160 160 160
Optimum line of sight m101421
Contrast5000 : 1 5000 : 1 5000 : 1
Driving IC MBI5253 MBI5253 MBI5252
Scanning method lines241812
Module power consumption W20W20W20W
Chassis input voltage VAC86~264 86~264 86~264
Power distribution W/m² 650650650
Maximum Power distribution W/m² 480480480
Average power consumption W/m²135135135
Maximum heat dissipationBTU/HR/m²204020402040
Average heat dissipation BTU/HR/m² 570570570
Gray level 65536 (16bit) 65536 (16bit) 65536 (16bit)
Refresh rate Hz≥1,920 ≥1,920 ≥1,920
Frame frequency Hz 59.94 ,60,120 59.94 ,60,120 59.94 ,60,120
Interface Type HDMI,DVI,SDI,DP HDMI,DVI,SDI,DP HDMI,DVI,SDI,DP
Signal transmission distance mCAT6E:<100m
Multi mode fiber≤500m
Single mode fiber≤10Km
CAT6E:<100m
Multi mode fiber≤500m
Single mode fiber≤10Km
CAT6E:<100m
Multi mode fiber≤500m
Single mode fiber≤10Km
Storage temperature -40℃~60℃-40℃~60℃-40℃~60℃
Operating temperature -10℃~40℃ -10℃~40℃ -10℃~40℃
Storage humidity %RH10%~90%10%~90%10%~90%
Working humidity %RH10%~90%10%~90%10%~90%
Protection levelIP30 Indoor IP30 Indoor IP30 Indoor
LED lifespan
(75% brightness)
Hrs500005000050000
MTBFHrs100001000010000
Certification TUV-CE,ETL,FCC,MET,CCCTUV-CE,ETL,FCC,MET,CCCTUV-CE,ETL,FCC,MET,CCC
ParameterUnit1.5625mm1.25mm1.875mm
Product name COB Flex led screen COB Flex led screen COB Flex led screen
Pixel setting RGBRGBRGB
EncapsulationCOBCOBCOB
Driving mode Common Anode Common Cathode Common Anode
Pixel pitch mm1.561.251.875
Pixel density dot/m² 409600640000284444
Module size mm300×168.75 300×168.75 300×168.75
Module resolution pixels192X108240X135160X90
Contrast6000 :1 5000 :1 6000 :1
MaintenanceFront access Front access Front access
Brightnessnits≤800 ≤800 ≤800
Horizontal viewing angle °160160160
Vertical viewing angle°160160160
Optimum line of sight m5.44.36.4
Driving mode Constant Current Constant Current Constant Current
Scanning method lines4827/45 40
Module power consumption W12.5 812.5
AC input voltage VAC100~240 100~240 100~240
Power distribution W/m² 675765675
Maximum Power ConsumptionW/m² 260260260
Average power consumption W/m² 127127127
Maximum heat dissipation BTU/HR/m² 805 805 805
Average heat dissipation BTU/HR/m² 405405405
Gray level14bit~16bit 14bit~16bit 14bit~16bit
Refresh rate Hz≥3840 Hz ≥3840 Hz ≥3840 Hz
Frame frequencyHz59.7 ,60,120 59.7 ,60,120 59.7 ,60,120
Interface Type HDMI,DVI,SDI,DP HDMI,DVI,SDI,DP HDMI,DVI,SDI,DP
Signal transmission distance mCAT6E:<100m CAT6E:<100m CAT6E:<100m
Storage temperature -40℃~60℃ -40℃~60℃ -40℃~60℃
Operating temperature -10℃~40℃ -10℃~40℃ -10℃~40℃
Storage humidity%RH10%~90%10%~90%10%~90%
Working humidity%RH10%~90%10%~90%10%~90%
Protection levelIP30 Indoor IP30 Indoor IP30 Indoor
LED lifespan (75% brightness)Hrs750007500075000
CertificationTUV-CE,FCC TUV-CE,FCC TUV-CE,FCC

Let‘s talk about your projects.

Share some details about your vision and requirements, and we can explore how our customized LED solutions can bring your ideas to life. Whether it’s design flexibility, installation challenges, or performance goals, we’re here to discuss and deliver the perfect solution tailored to your needs.

What is the consist of led screen?

The flexible LED system consists of two main components: the high-resolution LED screen and its lightweight structural frame.

Flexible LED
LED tile

LED tiles support both indoor curvature, enabling creative shapes for dynamic and flexible display designs.

Flexible LED

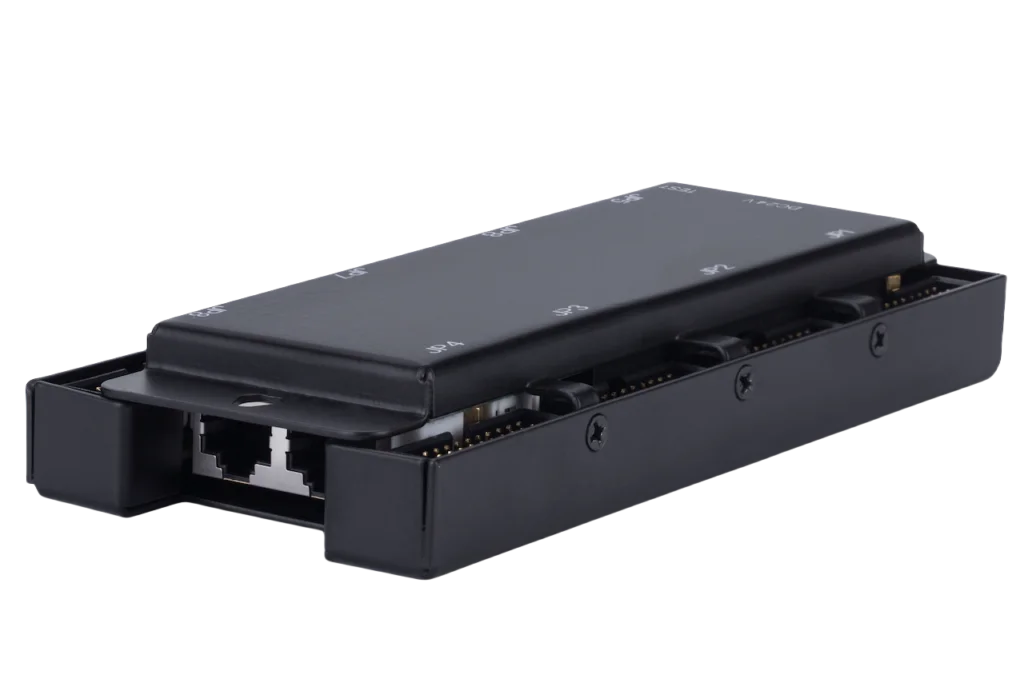

RV Box

Processes signals from the controller, ensuring data synchronization and transmission functionality.

Flexible LED
Power Cables

International standard-compliant cables, certified for safety and performance, ensure reliable connectivity across installations.

Flexible LED
Controller

Choose from Novastar, Colorlight, and Brompton based on customer requirements for optimal display management.

Flexible LED
Power Supply

Power options from Taiwan Meanwell or internationally certified power supplies ensure stable performance and energy efficiency.

Flexible LED
Data cables

Custom-designed structures tailored to project needs, ensuring seamless installation and strong support for flexible LED systems.

4 Key factors of LED Tile

Flexible LED

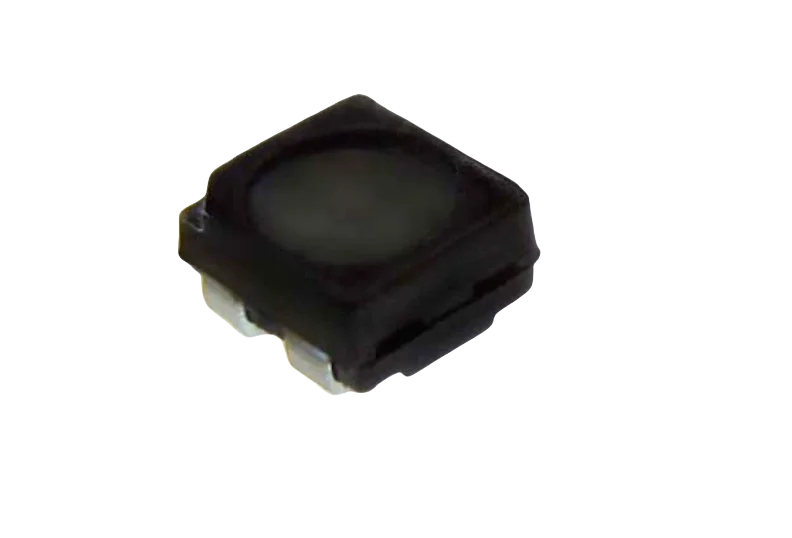

LEDs

LEDs come in various brands like Nationstar, Multicolor, Interled, and Kinglight, each offering different chip types (e.g. chip-type, top-type). Choosing the right LED is essential for accurate color reproduction, with clear specifications based on project requirements to ensure optimal display performance.

Flexible LED
Drive ICs

Drive ICs, available in different brands, are crucial for signal processing. We primarily use MBI chips, selecting the appropriate model based on project needs. The right drive IC ensures efficient data processing, smooth display operation, and consistent visual output for various screen sizes and applications.

Flexible LED

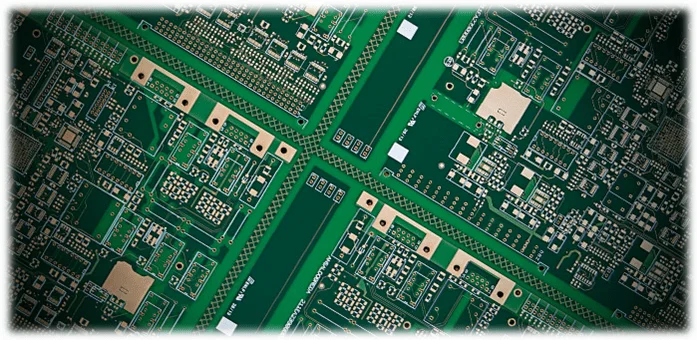

PCB Boards

PCBs vary in design, with options like 4-layer, 6-layer, and high-precision boards. For small-pitch screens, we choose high-precision PCBs, which are fire-resistant and meet RoHS standards. High-quality PCBs ensure stable performance, improved heat dissipation, and increased durability for demanding display applications.

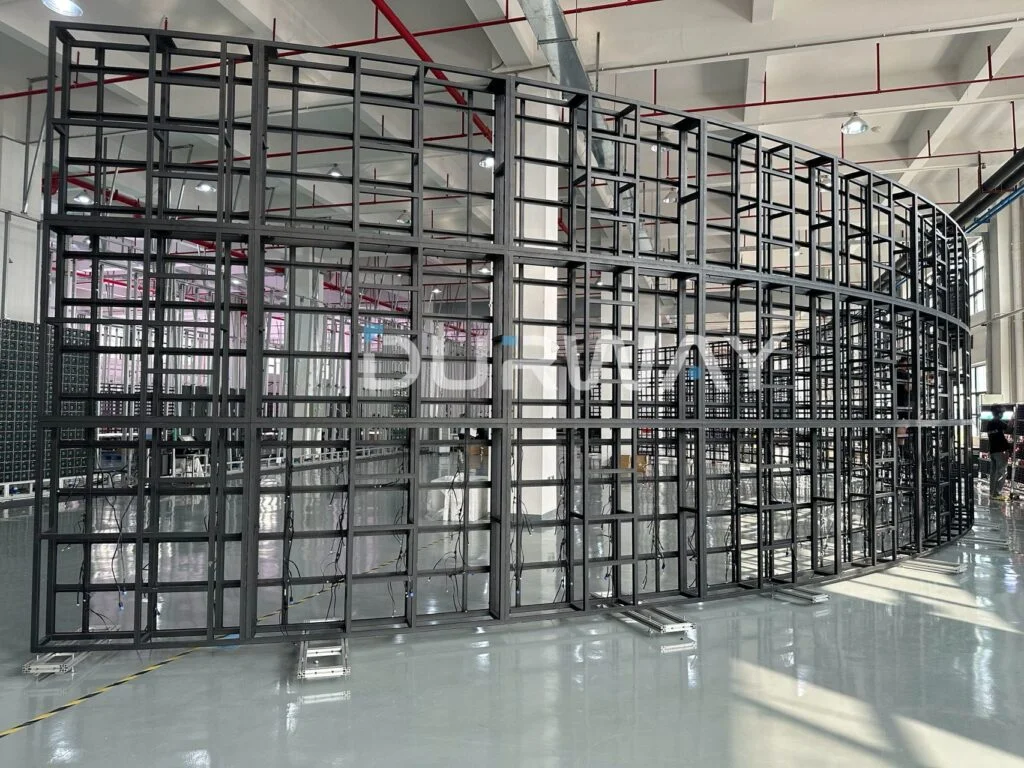

led factory
Flexible LED

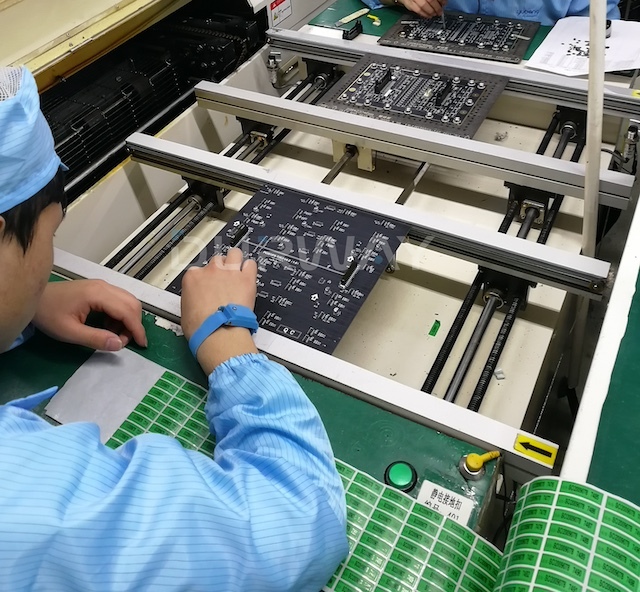

Manufacturing

The manufacturing of LED displays is crucial for ensuring durability, high performance, and seamless visual quality. Precision in design, careful assembly, and advanced technology are essential to achieve vibrant colors, energy efficiency, and long-lasting reliability for diverse applications.

What is the Color Space ?

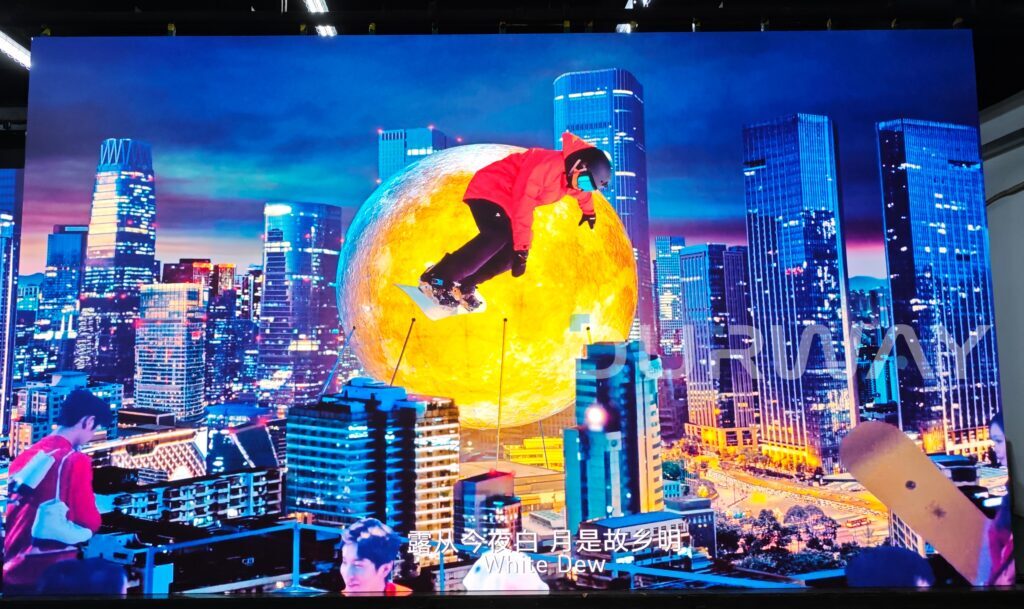

Our screens are capable of achieving >98% DCI-P3 and >86% REC2020 color gamuts, based on customer needs. This wide color spectrum enhances color richness and naturalness. When viewed through a camera, the colors are faithfully reproduced, offering accurate and lifelike visuals with vibrant details.

wide color space

The Options for Power supply units

All projects use Meanwell power supplies or equivalent high-quality power units, ensuring reliable performance, energy efficiency, and long-term durability for optimal system operation.

Flexible LED

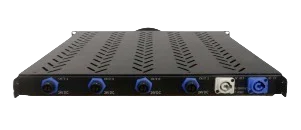

Fanless PSU box

Features 4 power supply units, designed for indoor use with reliable silent performance and compact design.

Flexible LED

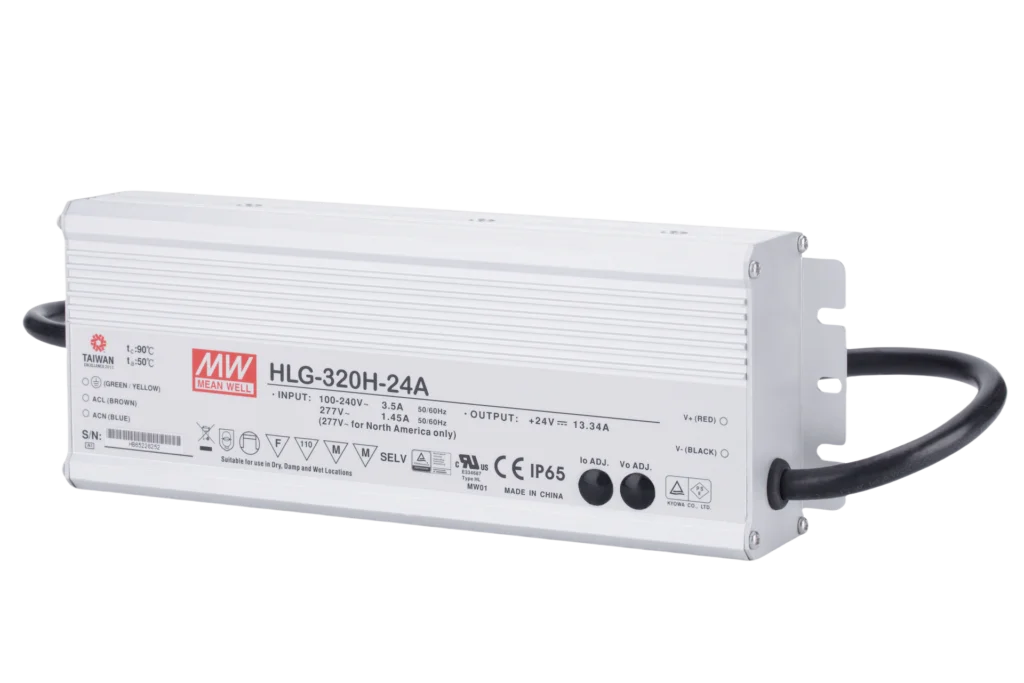

Waterproof PSU

Waterproof power supply unit for both outdoor and indoor applications, ensuring durability and silence.

Flexible LED
Indoor fanless PSU

A quiet, fanless power supply ideal for indoor environments, providing stable power without noise or maintenance.

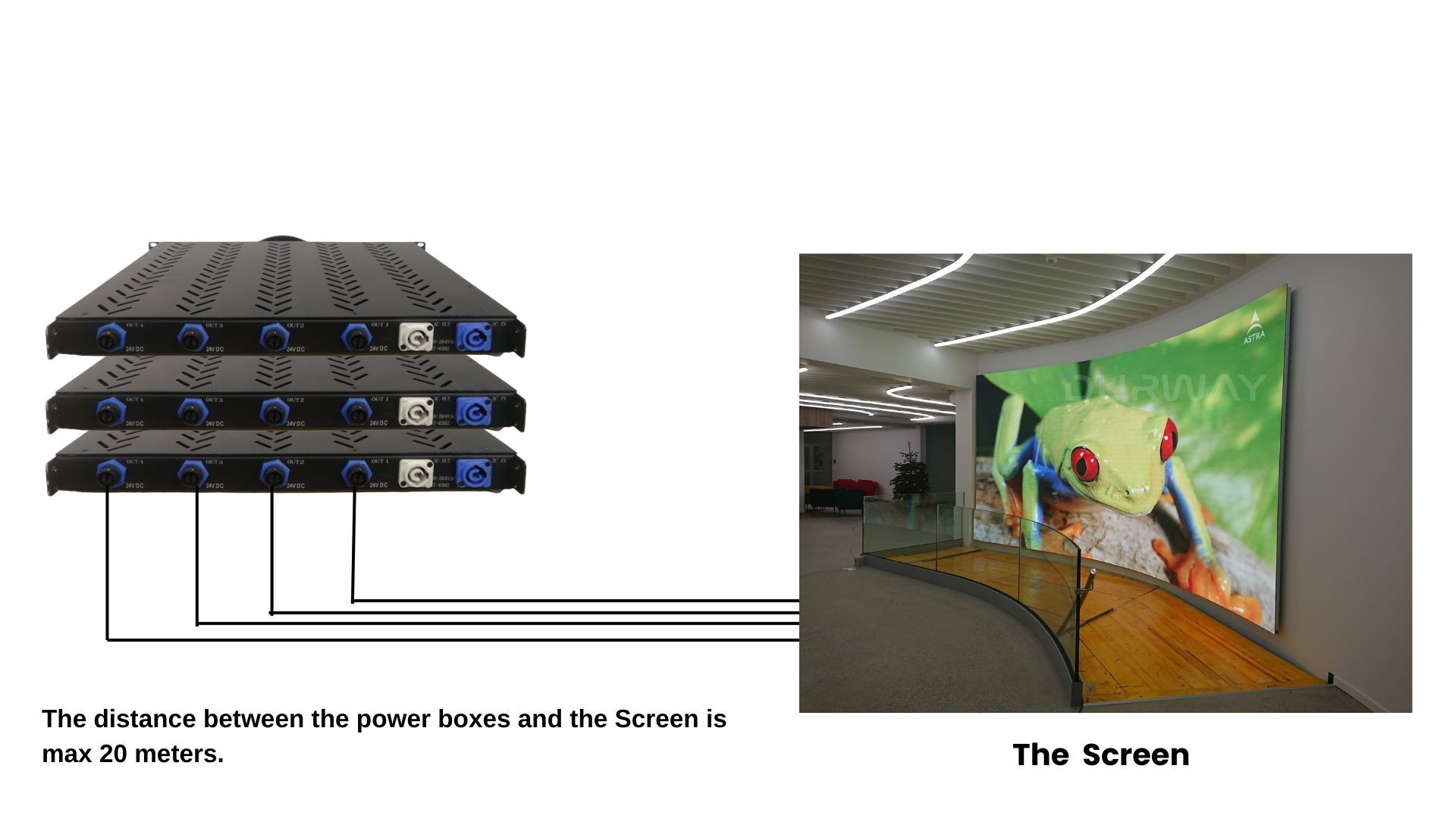

Remote psu

Why use PSU box to supply long distance power?

The power supply box can be centrally managed and placed up to 20 meters away from the screen, based on project requirements.

This centralized power management reduces cable clutter, ensures stable power distribution, and improves system reliability. It also minimizes heat generation near the screen, enhancing longevity and performance.

The Structure of System

The system’s structure is lightweight and modular, supporting flexible LED screens with easy installation, centralized power management, and durable materials for diverse creative and complex installations.

How to install led screen?

Set up the support frame.

Mount the LED modules onto the frame.

Connect the power and signal cables to the respective modules.

Turn on the system and perform a thorough system check and debugging. Ensure that all connections are secure and that the system operates properly before completing the installation.

What else is needed for Clients?

Acoustic LED
Video Content

Clients must prepare or purchase suitable video content for optimal display performance and quality.

Acoustic LED

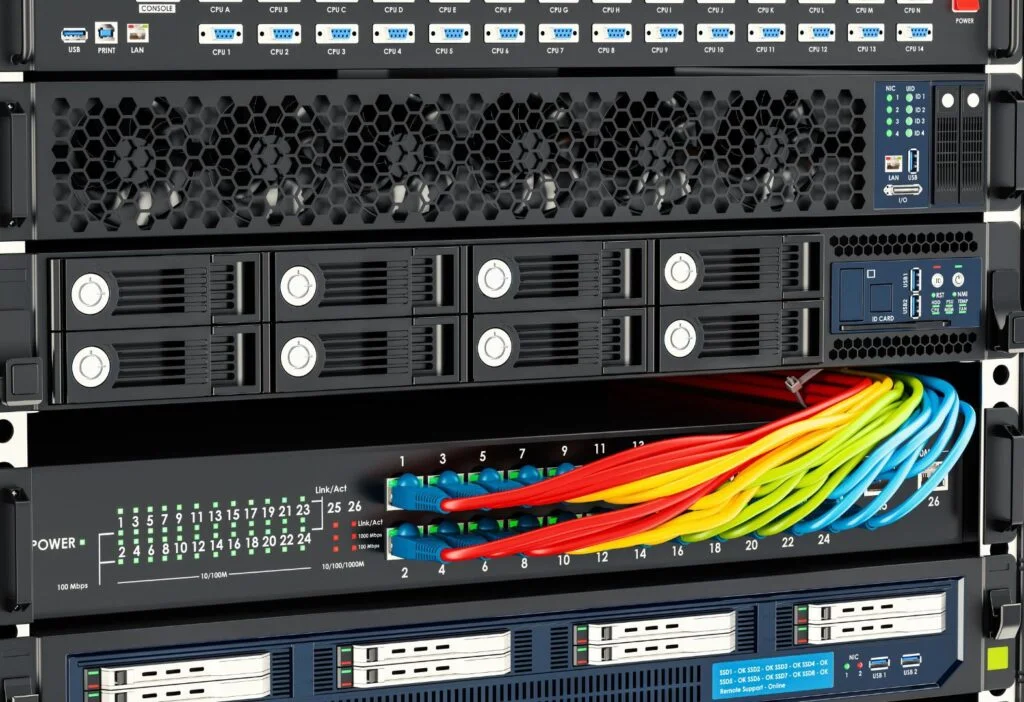

Media Server

A reliable media server is essential for seamless content management and smooth playback on screens.

Acoustic LED
Skilled Person

Skilled persons are needed for setup, maintenance, and troubleshooting to ensure smooth operation.

How to pack and ship the goods?

Shipping by sea or air is arranged based on the client’s specific requirements, ensuring timely and cost-effective delivery according to their preferences and project needs.

Warranty term?

Our warranty terms typically range from 2 to 5 years, with extensions available based on customer needs. During the warranty period, our engineers conduct annual inspections. If modules require repair, they should be sent to the designated location or returned to the factory for servicing.

Certificates?

We hold several certifications, including ETL, TUV-CE, FCC, CB, EAC, and RoHS. These certifications ensure that our products meet international safety, quality, and environmental standards, demonstrating our commitment to providing reliable, high-performance LED solutions for customers worldwide.

FAQ

A flexible LED screen is a display that uses light-emitting diodes (LEDs) and can bend or curve without breaking. This technology is used in a variety of applications, from signage and advertising to wearable devices. The flexibility allows it to be mounted on curved surfaces or used in dynamic environments where rigid screens would be impractical.

Flexible LED screens offer several benefits, including:

  • Curved and adaptable designs: Can be shaped to fit various surfaces.
  • Lightweight and thin: Easier to install and handle.
  • Durable and flexible: Resistant to impact and bending.
  • Versatility: Can be used for both indoor and outdoor applications.
  • Energy efficiency: Consumes less power compared to traditional displays.

No, flexible LED screens are generally not designed for outdoor use in their standard form. While they are flexible and durable, they may not have the necessary weatherproofing features to withstand outdoor conditions such as rain, extreme temperatures, and direct sunlight.

For outdoor applications, special versions of flexible LED screens with enhanced protective coatings and weather-resistant features, such as waterproofing and UV resistance, are required. Without these modifications, using standard flexible LED screens outdoors could result in damage or failure of the display.

The lifespan of a flexible LEDs typically lasts 100,000 hours, depending on usage, maintenance, and environmental conditions. This is much longer than traditional display technologies such as CRT or LCD screens.

Yes, flexible LED screens are energy efficient. LED technology consumes significantly less power compared to traditional light sources, such as fluorescent or incandescent lights. This results in lower operational costs and a smaller environmental footprint.

Flexible LED screens are more versatile than rigid ones because they can be curved, bent, and shaped to fit a variety of surfaces. Rigid LED screens, on the other hand, are fixed in shape and are typically used for flat installations. The flexibility of these screens opens up new design possibilities but may come at a higher price point.

Yes, one of the key advantages of flexible LED screens is their ability to be installed on curved or irregular surfaces. This makes them ideal for applications like curved walls, architectural displays, or installations on vehicles.

The resolution of a flexible LED screen can vary depending on the model and purpose of the display. Flexible LED screens come in various pixel pitches (distance between pixels), which determine the clarity and sharpness of the image. Higher pixel pitches provide sharper images, while lower pixel pitches are better for larger installations.

Maintaining a flexible LED screen involves routine cleaning, ensuring proper ventilation, and checking for any physical damage. Additionally, it is important to keep the screen free from moisture and protect it from extreme temperature fluctuations. For optimal performance, regular checks for pixel malfunctions and software updates are recommended.

The cost of a flexible LED screen can vary greatly based on factors like size, resolution, installation requirements, and the specific brand or technology used. Generally, flexible LED screens are more expensive than traditional rigid LED displays, but the prices have been decreasing as the technology advances.

Testimonials

Customer stories

Testimonials

Ask for a Quote

Reach out for your upcoming project, and we’ll get back to you within 24 hours.

Contact us

Reach out for your upcoming project, and we’ll get back to you within 24 hours.
