Las Vegas LED Sphere
On September 29, 2023, the iconic Sphere in Las Vegas, Nevada, USA, made its grand debut. Covering nearly 20,000 m² with a height of 112 meters and a maximum width of approximately 157 meters, it surpassed Stockholm’s Avicii Arena to become the world’s largest spherical structure. Combining a massive spherical architecture with interior and exterior LED screens, the Sphere has become an internationally recognized landmark.
Since the emergence of dome cinemas in the 1970s, exemplified by IMAX film projections, these venues have attracted audiences with their unique viewing experiences, exceptional naked-eye 3D effects, surround sound, motion seats, and immersive technologies like sprays and fans. Today, immersive dome cinemas like the Sphere represent the forefront of innovative viewing spaces, offering comprehensive immersive experiences that captivate audiences worldwide.
This blog delves into the technical features of the Sphere, exploring its exterior and interior display systems, stage lighting and mechanics, sound systems, motion seats, and immersive content. It also examines the achievements of the Sphere in creating immersive experiences and contemplates the future development of immersive dome cinema technology.
Technical Implementation of Full-Scene Immersion
The Sphere is a colossal dome cinema featuring both interior and exterior LED screens and spacious multi-scene application spaces across nine underground levels. With 17,600 seats, over 2,400 viewing positions, and 23 VIP suites, it hosts concerts, award ceremonies, press conferences, and film screenings. The inaugural event, “U2: UV Achtung Baby Live at Sphere,” showcased the Sphere’s unique spatial advantages, blending live performances with kaleidoscopic visuals to create an immersive audiovisual feast. Additionally, the natural documentary “Postcards from Earth” utilized the Sphere’s immersive narrative style, enhancing the overall immersive experience.

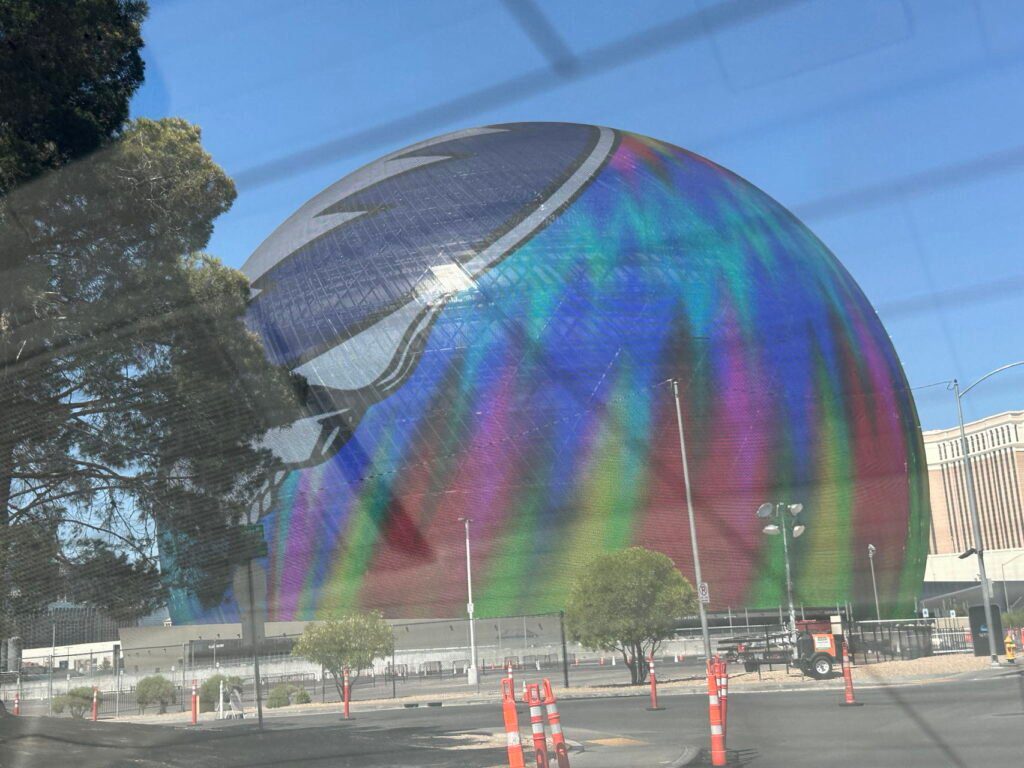

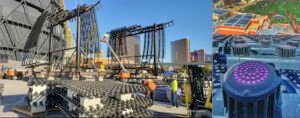

Exterior Sphere Display System
The Sphere’s exterior LED screen spans 54,000 m², exceeding the size of three football fields, making it the largest LED screen globally. Composed of 48 independent LED modules arranged in concentric circles, the screen features 1.2 million pixel units with a 20 cm pitch. Supported by an 86-meter temporary tower and a 154-ton compressed ring, the exterior sphere maintains stability and displays ultra-high brightness of over 4000 nits, ensuring clear visuals even under daylight.

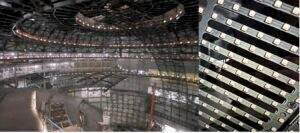

Interior Sphere Display System
Inside, the Sphere boasts a 15,000 m² LED screen with a resolution of 19,000 × 13,500 pixels. LED beads are spaced 9-10 mm apart on a grid, achieving a 25% aperture rate. Supported by a 730-ton arched steel structure, the interior screen offers a panoramic view without obstructive pillars, providing an immersive visual experience from any seating position.
Stage Lighting and Mechanics
Unlike traditional dome cinemas that lack stages and lighting systems, the Sphere integrates these elements to host live performances. For the U2 concert, the stage featured a circular screen and a square screen, meticulously assembled to ensure seamless visual consistency. The stage utilized custom-shaped LED panels and innovative mounting systems, enabling dynamic lighting effects that enhanced the overall immersive experience.
Sound System
Creating a high-quality immersive sound experience in the Sphere’s vast spherical space involved innovative solutions. The Sphere Immersive Sound system employs beamforming and wave field synthesis technologies, utilizing 1,600 fixed and 300 movable rectangular speaker arrays. These 167,000 speakers ensure precise sound coverage, allowing each audience member to experience clear, full-frequency sound without interference or echo issues common in large dome structures.
Motion Seats
Enhancing the audiovisual immersion, the Sphere integrates over 10,000 motion seats equipped with tactile feedback systems and sub-low-frequency transducers. These seats vibrate and move in sync with the performance, providing physical sensations like vibration, wind, temperature changes, and even scents, offering a comprehensive multi-sensory experience.
Immersive Content
The Sphere’s high-resolution 16K LED screens necessitate advanced content production. The Sphere Studios developed the “Big Sky” camera system with a 316-million-pixel HDR sensor, enabling single-camera 16K captures and eliminating the need for multiple cameras and complex stitching processes. This innovation, alongside robust media server infrastructure, supports real-time rendering and seamless content integration, allowing for dynamic and interactive visual presentations during live performances.
Highlights and Comparisons

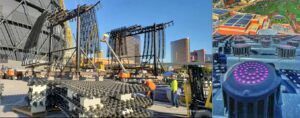

Construction of the Las Vegas LED Sphere
The Sphere’s construction is a monumental achievement, standing at 112 meters tall and accommodating up to 20,000 spectators. Built over four years, from 2019 to 2023, the project overcame numerous challenges in planning, design, structural engineering, safety, and construction techniques. Its sheer scale and engineering complexity make it a standout example in the realm of immersive dome cinemas.
Translucent LED Screen Dome
A significant innovation in the Sphere is its use of translucent LED screens. Unlike traditional DLP projection systems, which can suffer from light interference and image degradation on curved surfaces, LED screens offer superior brightness, clarity, and color gamut. The Sphere’s translucent LED design, featuring linear perforations, enhances sound quality by allowing audio to pass through the screen, reducing echo and ensuring clear sound without compromising visual integrity.
Directional Sound Technology in the Dome
Traditional surround sound systems struggle to provide uniform audio coverage in large spaces. The Sphere addresses this with directional sound technologies like beamforming and wave field synthesis, using nearly 2,000 HOLOPLOT X1 speakers. This setup ensures immersive, evenly distributed sound, allowing different audience zones to receive distinct audio streams, accommodating multilingual performances without the need for individual headphones.
Integration of Exterior and Interior Spheres
The Sphere uniquely combines its exterior and interior spheres, serving dual functions as both a landmark and a versatile performance venue. The exterior LED displays showcase dynamic visuals and advertisements, while the interior space hosts a wide range of events. This seamless integration allows the Sphere to function as a multifunctional hub, setting it apart from other global projects that typically focus on either visual display or performance hosting, but not both.
Future Development of Immersive Dome Cinema Technology
Video Projection Technology
Dome cinemas worldwide primarily use multi-projector setups, IMAX systems, or LED displays. While multi-projector systems are widely adopted due to their mature technology, LED screens are emerging as a superior alternative with better brightness and image quality. The Sphere’s successful implementation of translucent LED screens signals a growing trend towards LED-based dome cinemas, despite higher costs and investment requirements.
Immersive Audio Technology
Immersive audio has seen widespread adoption in broadcasting and online media. In 2023, China introduced the Audio Vivid technology, setting industry standards for 3D audio encoding and rendering. The Sphere’s advanced immersive sound system, utilizing HOLOPLOT directional speakers, sets a benchmark for audio quality in large venues. As standards develop, immersive audio is expected to see explosive growth, driving innovation in audio rendering engines and directional speaker technologies.
Content Production Technology
Producing high-resolution dome content remains challenging due to the need for 8K or higher resolution and support for high frame rates and wide color gamuts. The Sphere Studios’ “Big Sky” camera system represents a significant advancement, enabling single-camera 16K captures. However, high costs and technical demands limit widespread adoption. Future developments must focus on making high-resolution content production more accessible and cost-effective to meet the growing demand for immersive dome experiences.
Conclusion and Outlook
Despite numerous challenges, immersive dome cinemas like the Sphere have successfully demonstrated the potential of integrating advanced technologies to create compelling immersive experiences. The Sphere’s pioneering use of LED screens, immersive audio systems, and high-resolution content production technologies sets new industry standards and paves the way for future innovations.
Looking ahead, as immersive technologies continue to evolve and high-quality content becomes more prevalent, immersive dome cinemas are poised for significant growth. China’s advancements in LED and audio technologies, coupled with initiatives like the Sphere’s “Big Sky” system, highlight the country’s potential to lead in this field. With continued investment and technological breakthroughs, immersive dome cinemas will attract global audiences, showcasing the ingenuity and technological prowess of Chinese enterprises on the world stage.
Future of LED Sphere Technology
The popularity of LED Sphere Technology is on the rise. Here are some key trends:
- Growing Demand: More businesses are adopting LED Spheres for advertising and decoration.
- Technological Advancements: Continuous improvements are making LED Spheres more efficient and versatile.
- Market Growth: The LED display market is expected to expand significantly in the next few years, with LED Spheres leading the way in innovative designs.
Durway also offers different specifications of LED Spheres and customizable sizes to meet your specific needs. Explore our LED Sphere options today!
FAQs about LED Sphere
Q1: What makes Durway’s LED Sphere different?
A1: Durway’s LED Sphere combines high-quality visuals with a unique spherical design,360 degrees full view, using advanced materials that ensure bright and clear displays from every angle.
Q2: Where can LED Sphere be used?
A2: They are ideal for retail stores, museums, corporate offices, and public spaces.
Q3: Are Durway’s displays easy to install?
A3: Yes, Durway provides comprehensive support to ensure easy installation and integration.
Why Choose Durway?
Durway System Corp, with 30+ years of expertise, provides advanced LED display solutions for industries like planetariums, museums, theme parks, entertainment, and broadcast. We offer high-quality products, including fine-pitch outdoor LEDs, flexible screens, microLED displays, LED domes, LED spheres, and custom solutions, trusted for their reliability and visual excellence worldwide.
Durway stands out in the market for several reasons:
- Innovative Technology: Leading the way with cutting-edge LED Sphere
- Proven Success: Numerous case studies and testimonials highlight our effectiveness.
- Customer-Centric Approach: We prioritize our clients’ needs, offering customized solutions.
- Quality Assurance: Durable and reliable products that meet the highest standards.
Conclusion: Elevate Your Visual Experience with Durway
Choosing Durway means investing in the best LED Sphere on the market. Our technology ensures that you receive stunning visuals that captivate your audience, creating an unforgettable experience. Ready to transform your space? Contact Durway today and discover how our LED Sphere solutions can elevate your business.
