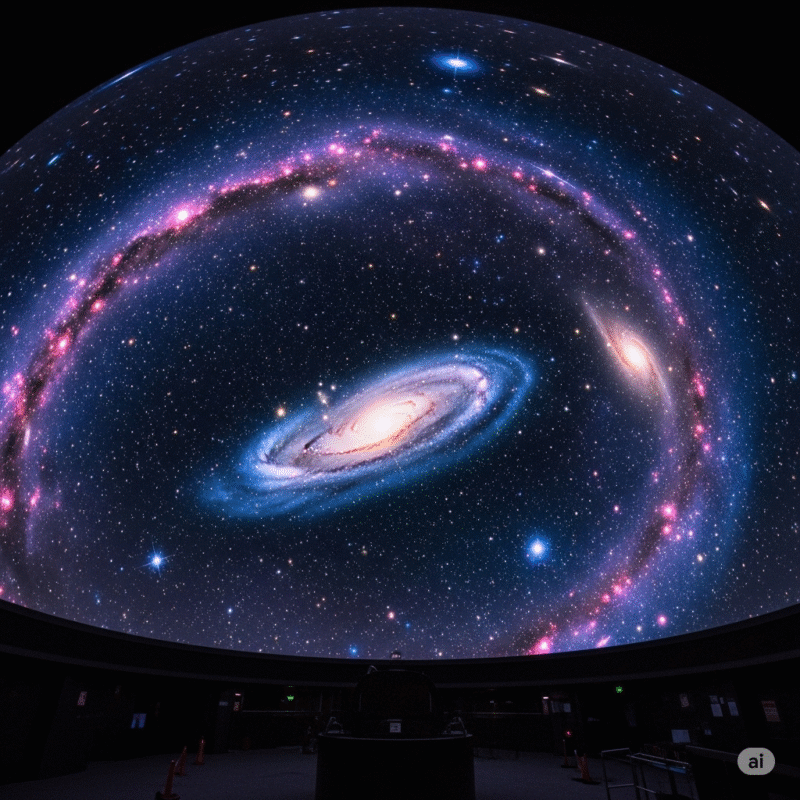

1. Introduction to Our LED Dome System
Creating a truly immersive environment requires not just cutting-edge projection or display technology but a seamless integration of design, reliability, and performance. Our 20 m LED dome system leverages DesignLED’s patented flexible panel technology to deliver lifelike visuals, effortless maintenance, and unmatched durability. In this blog, we delve into the specifications, innovations, and practical considerations that distinguish our LED dome system.
The demand for high-fidelity full dome shows—from planetariums to immersive theaters—continues to grow. Traditional projection-based solutions often struggle with issues such as brightness, contrast, and uniformity. Our LED dome system overcomes these challenges by utilizing flexible LED panels engineered for curved surfaces. With true 8K and 10K resolutions, anti-reflective surfaces, and simplified maintenance, this system elevates the viewer experience and reduces long-term operational costs.
2. Flexible Panel Technology
At the heart of our LED dome system are A4-sized flexible LED panels. Crafted from a matte-black PCB substrate, each panel can bend in two dimensions, conforming precisely to the dome’s curvature. This flexibility ensures:
Perfect Spherical Fit: No gaps or misalignments, preserving seamless imagery.
Exceptional Durability: Engineered components and reinforced soldering prevent damage even when panels are bent during installation or maintenance.
Lightweight Design: Flexible panels weigh significantly less than rigid counterparts, reducing load on supporting structures.
3. Non-Reflective, Ultra-Black Surface
Reflections within a dome can distract from the projected content and degrade contrast. Our panels incorporate:
Non-Reflective LED Bodies: Specially painted LED casings absorb stray light, which presents the good effects of the LED system.
Mat Black Covering: A proprietary matte finish minimizes cross-reflections at all viewing angles.
Invisible LED Pins: No pinholes or bright spots, ensuring a uniform black background when panels are off.
These features maintain deep blacks and vibrant colors, even in bright environments.
4. Color Uniformity and Consistency
Color shifts—greenish or pinkish tints—are common in off-center viewing of standard LED displays. The patented process eliminates this issue:
No Color Shift: Uniform color reproduction across the entire dome, critical for accurate astronomical and scientific visualizations.
Tailored Gamma Curves: Pre-calibrated for full-dome content, ensuring that celestial and space imagery appear as intended.
12-bit Processing & 24-bit Color Control: Smooth gradients and precise color depth, enhancing realism.
5. Real 8K vs. Real 10K Resolution
Choosing the right resolution impacts image clarity, pixel density, and viewing distance:
| Feature | Real 8K System | Real 10K System |
| Total Pixels | ~33 million | ~52 million |
| Pixel Pitch | Baseline | 20% finer |
| Minimum Viewing Distance | Standard | 21% closer |
| Close-Up Detail & Sharpness | Excellent | Superior |
| Production Standard | Current Industry Norm | Next-Gen Standard |
The 10K dome system offers 60 % more pixels than 8K, delivering unparalleled sharpness and allowing audiences to sit closer without perceiving pixel structure. For venues aiming to future-proof their installations, 10K is poised to become the new benchmark.
6, Brightness, Color Gamut, and Refresh Rate
Our LED dome system excels across key visual parameters:
Brightness: Up to 350 nits (maintaining > 300 nits after calibration), ensuring clear imagery even in ambient-lit environments.
Color Gamut: REC 709 > 100 %, DCI-P3 > 95 %, REC 2020 > 85 %, covering cinema and broadcast standards.
Refresh Rate: Supports 120 Hz content for fluid motion and reduced flicker.
These metrics guarantee vibrant, high-contrast visuals essential for fulldome shows, VR/XR experiences, and live events.
7, Simplified Cabling & Maintenance
Long-term reliability hinges on easy servicing. Our system features:
Single-Cable Connectivity: Each panel connects to its HubBox via one cable, minimizing cable clutter.
Front-Panel Tools & Backside Handles: Specialized handles on panels facilitate back-access removal; front-access tools allow safe detachment.
Safety Attachment Points: Panels lock into the subframe with safety lanyards to prevent falls during maintenance.
Replacing a faulty panel is as simple as pushing it out of the subframe, disconnecting the cable, and swapping in a new one. This streamlined process reduces downtime and labor costs.
8, Robust Structural Framework
A precision-engineered frame ensures mechanical stability:
Main Frame: Comprised of 24 meridians (240 mm aluminum pipes) and 13 parallels (50 mm pipes), forming the dome’s skeleton and transferring weight to the support structure.
Adjustable Subframe Modules: 640 steel modules in 15 shapes, each adjustable to maintain hemisphere accuracy within ± 0.1 mm.
Magnetic Panel Mounting: N35-grade neodymium magnets secure panels without tools, allowing quick alignment and repositioning.
This dual-layer frame design balances rigidity and adjustability, accommodating thermal expansion and ensuring long-term shape retention.
9, Integrated Control Electronics
Seamless operation requires robust control hardware:
Novastar / Colorlight Processor: Drives high-resolution fulldome content with precise synchronization.
Power Supplies: About 140pcs redundant supplies ensure uninterrupted operation and safety.
This architecture supports real-time rendering engines like SkyExplorer and FreeDome at native system resolutions, enabling live interactivity and dynamic content updates.
10. Why Choose Our LED Dome System?
Unmatched Visual Fidelity: True-to-life colors, deep blacks, and high brightness levels.
Future-Ready Resolution: 8K today, easy upgrade paths to 10K tomorrow.
Effortless Maintenance: Modular panels, single-cable design, and safety features.
Precision Engineering: Flexible panels on a meticulously calibrated subframe.
Customizable Access: Options for ladders or catwalks based on your operational needs.
Whether you operate a planetarium, immersive training center, or themed attraction, our LED dome system delivers the performance, reliability, and serviceability you need.
11. Conclusion
Investing in a premium LED dome system transforms your immersive venue into a state-of-the-art showcase. From flexible, anti-reflective panels and flawless color consistency to simple maintenance workflows and scalable resolutions, every aspect is engineered for excellence. Embrace the future of fulldome technology today and captivate your audience with visuals that defy expectation.
For more information, please visit: https://durway.com/led-dome/
