OmniTile - Outdoor Universal Mini LED Display
The Perfect Outdoor LED Solutions
Break the boundaries of traditional display with OmniTile™. Engineered for versatility, it combines the cinema-grade image quality of Micro LED Outdoor LED Display Screen with the heavy-duty protection of coating technology. Whether mounted as a Fixed Installation, hung for Stage Rental, or laid flat for Interactive Flooring, OmniTile guarantees stunning 4K/8K visuals that are both breathtaking to watch and tough enough to walk on.
Available: P1.25 | P1.5 | P1.8
Precision Engineering & Design

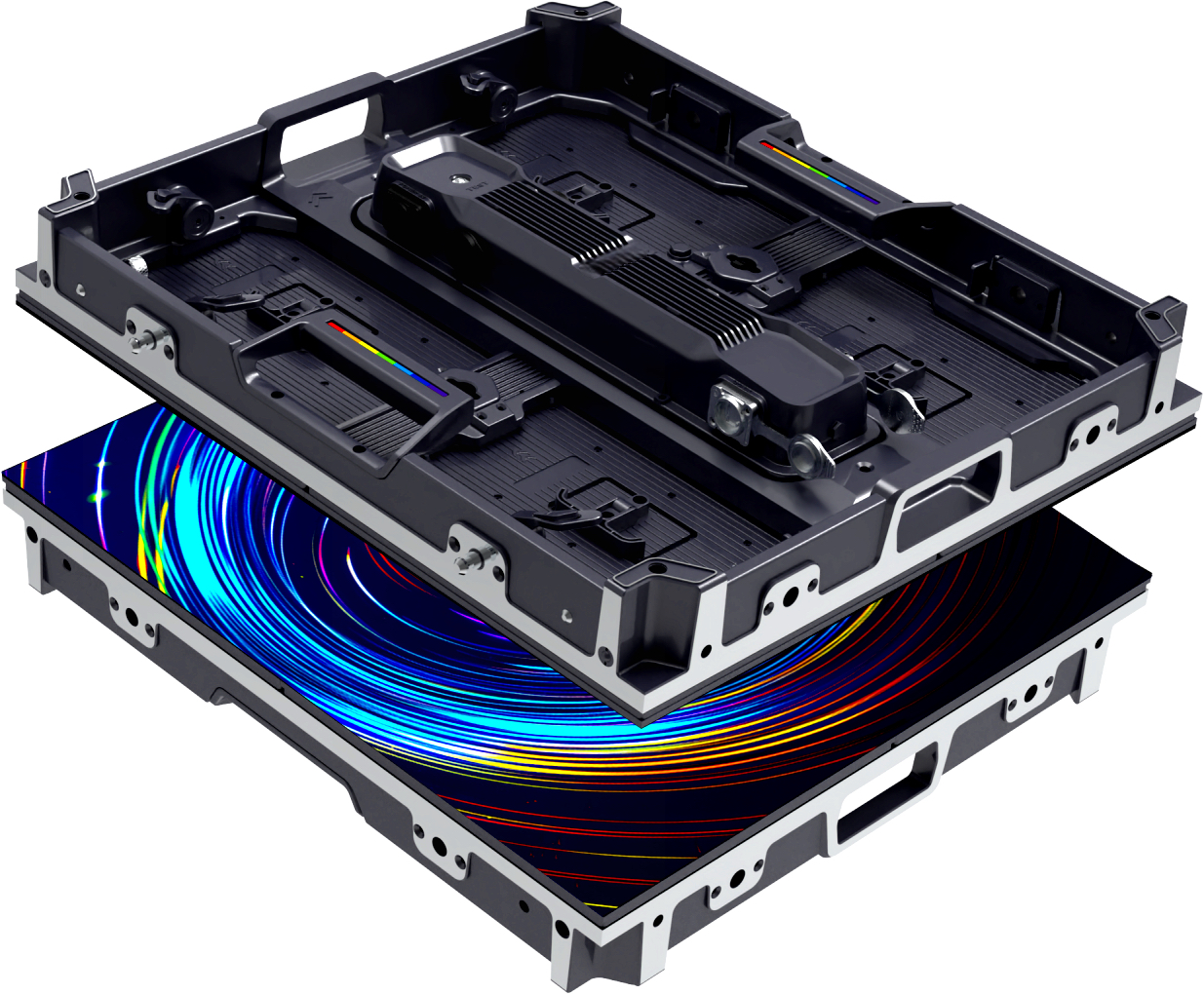

The OmniTile Outdoor LED features a high-precision rigid frame supporting pixel pitches from 1.25mm to 1.875mm, ensuring seamless alignment and flawless flatness for high-definition video walls. Its lightweight yet robust design allows easy stacking and hanging, while integrated edge protection safeguards modules during transport and installation
Unrivaled Visual Performance

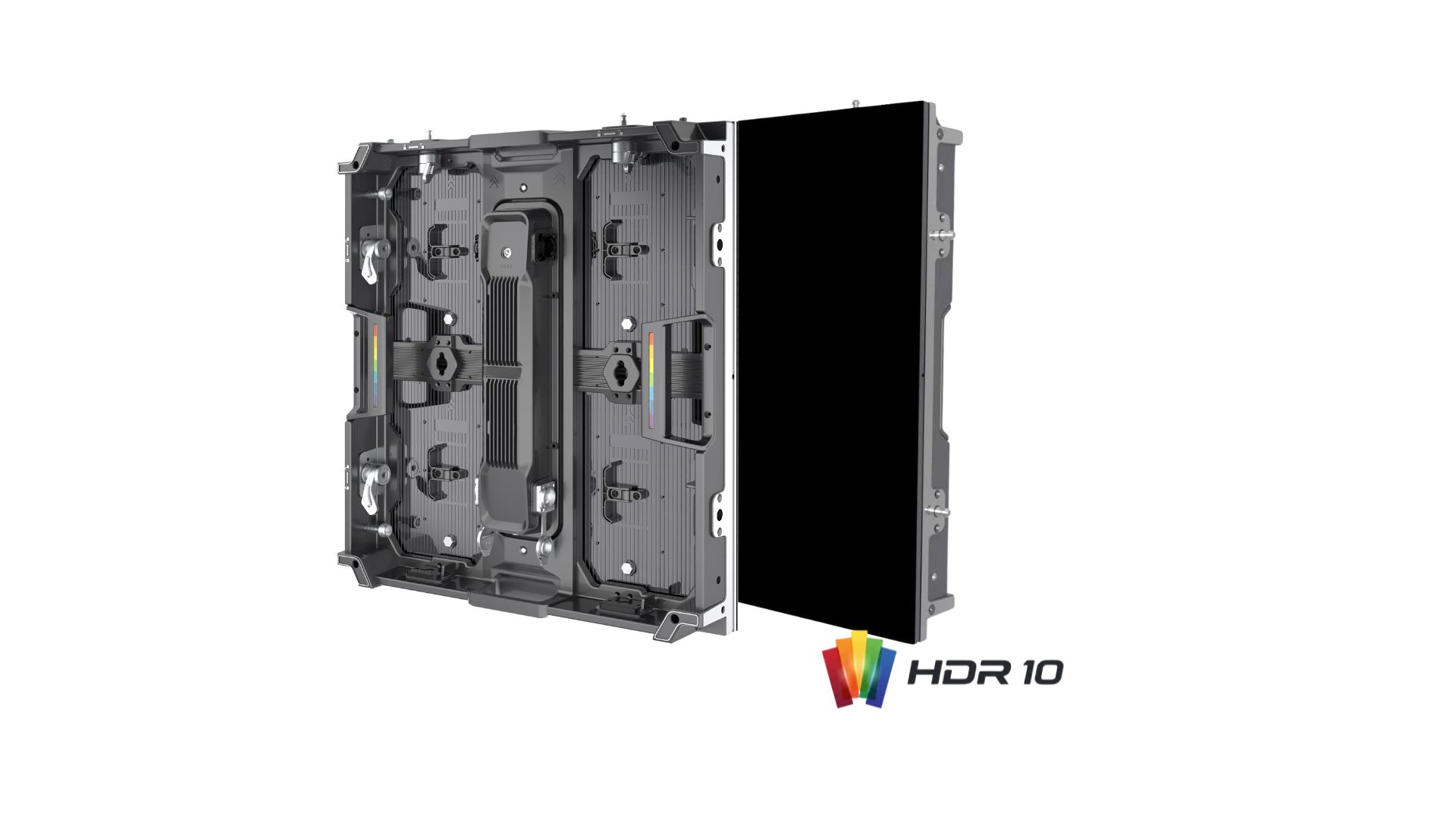

Powered by premium Black LED technology, OmniTile Mini LED Display delivers deep blacks, high contrast, and true-to-life colors with wide color gamut support. Advanced processing enables HDR10, low latency, and precise module calibration, while maintaining 16-bit grayscale even at low brightness for smooth gradients and rich detail in any lighting condition.
OmniTile
Key Features
Visual Excellence
True-to-Life Color
Cold Technology
High brightness 4000nits
3-in-1 Versatility
Rental| Fixed| Floor
Rugged Durability
Weather Resistant IP65
Energy Efficient
Front & Rear access

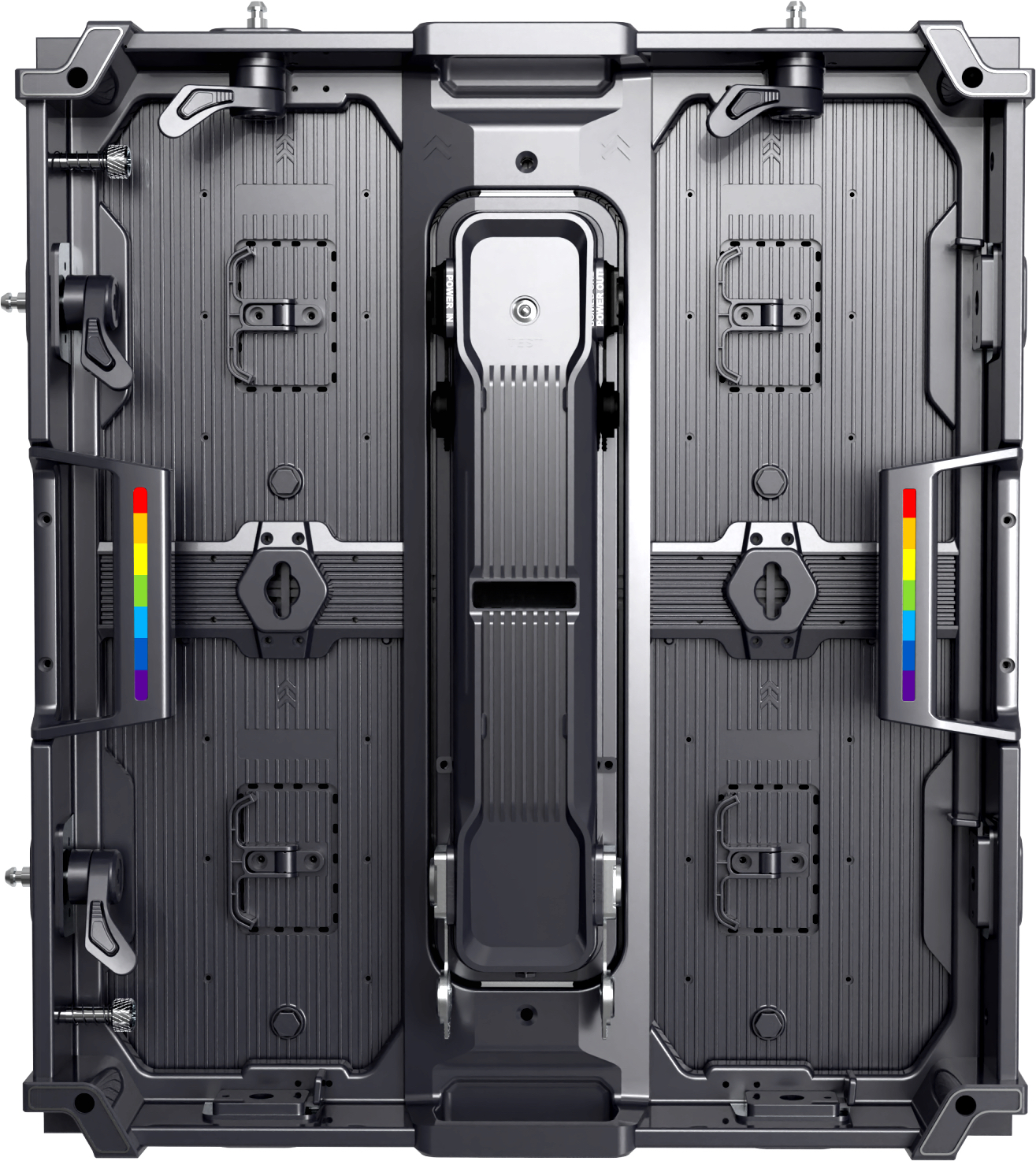

Durable Die-cast aluminum cabinet
Magnets assembly

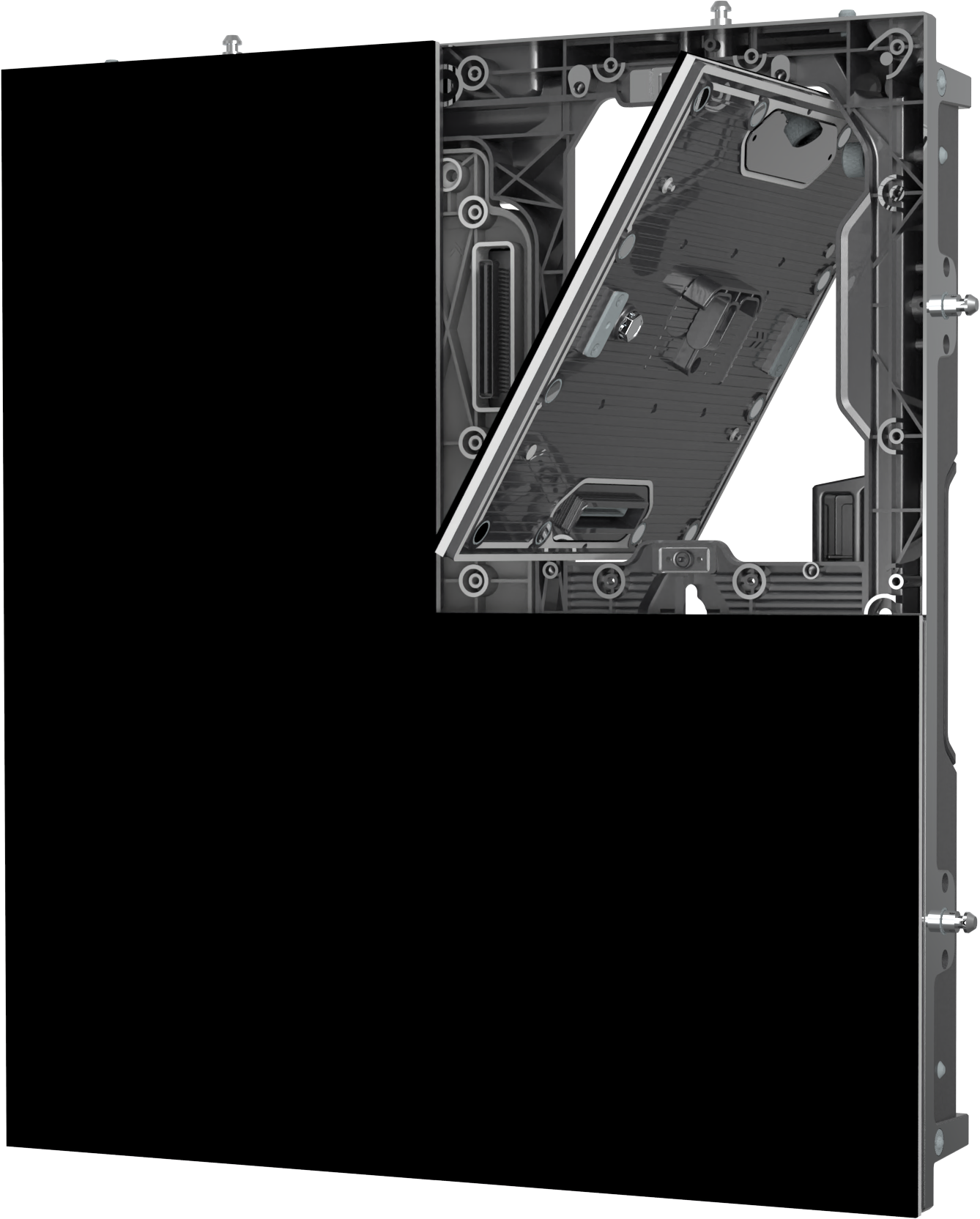

OmniTile front & back maintenance

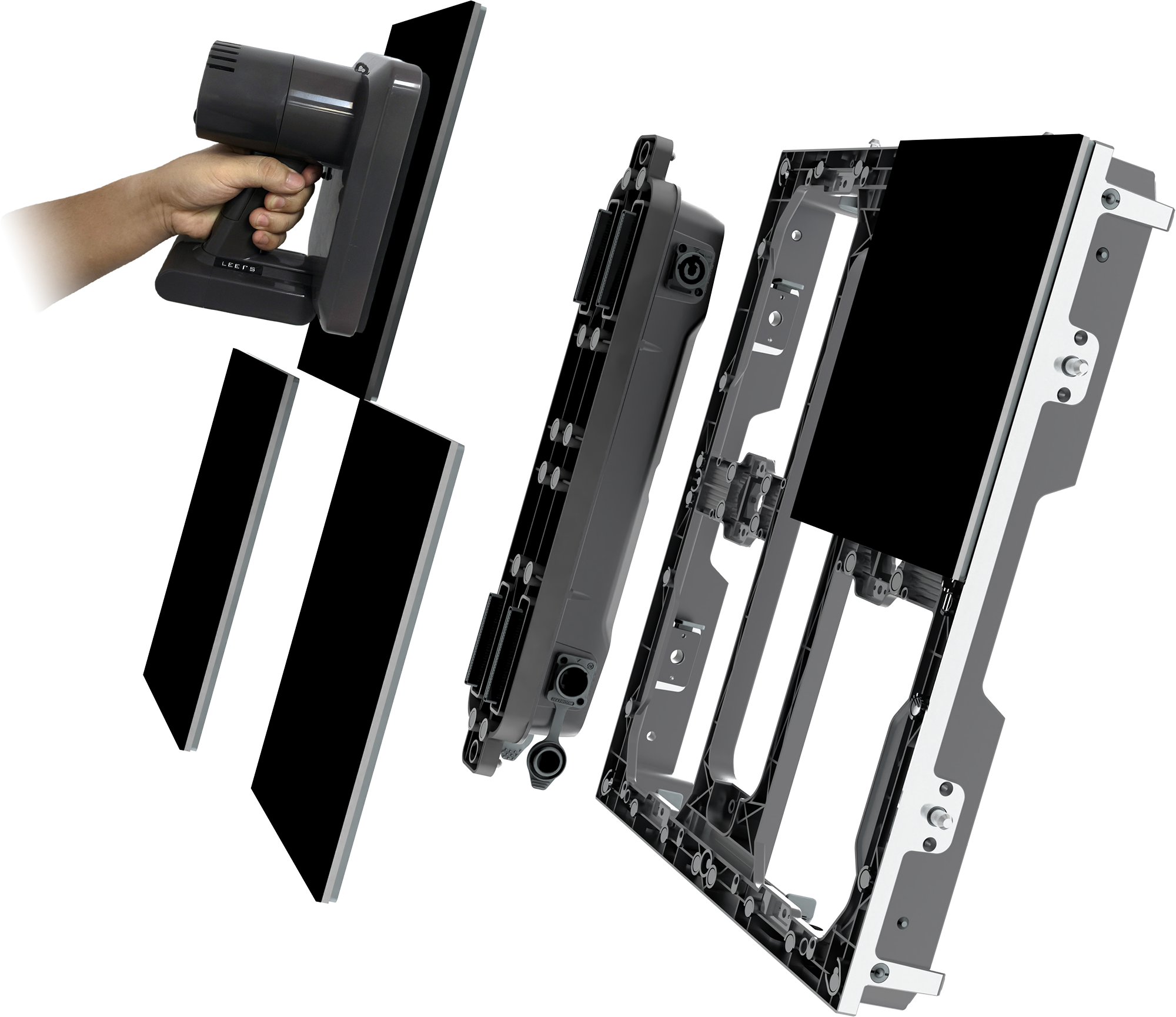

Both the power box and LED modules can be serviced from the front or the back. This full-maintenance flexibility allows for easy installation in tight spaces or complex stage setups.
Technical Specs
| Model | 1.25mm | 1.5mm | 1.875mm |
|---|---|---|---|
| Pixel Density(m2) | 640000 | 444444 | 284444 |
| LED Module Dimensions(mm) | 240×270x7.6 | 240×270x7.6 | 240×270x7.6 |
| Module Resolution | 192X216 | 160x180 | 128x144 |
| Panel Dimenslons (WxH×D(mm) | 480×540×78 | 480×540×78 | 480×540×78 |
| Cabinet Resolution | 384 x432 | 320 x 360 | 256 x 288 |
| Weight Per Tile | 9.5kg/tile | 9.5kg/tile | 9.5kg/tile |
| Surface Treatment | Outdoor GOB | Outdoor GOB | Outdoor GOB |
| Cabinet Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
| Maintenance | Front and Rear | Front and Rear | Front and Rear |
| IP Rating | IP 65 Outdoor | IP 65 Outdoor | IP 65 Outdoor |
| Brightness (after Cal.) | 4000nits | 4000nits | 4000nits |
| Refresh Rate | 7680Hz | 7680Hz | 7680Hz |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Color temperature | 2600-9500 adjustable | 2600-9500 adjustable | 2600-9500 adjustable |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000:1 | 5,000:1 | 5,000:1 |
| Max Power Consumption | 700 w/m² | 700 w/m² | 700 w/m² |
| Average Power Consumption | 315w/m² | 315w/m² | 315w/m² |
| OperatingTemp/Humidity | -10～40℃/10%～90% | -10～40℃/10%～90% | -10～40℃/10%～90% |
| Storage Temp/Humidity | -40～60℃/10%～90% | -40～60℃/10%～90% | -40～60℃/10%～90% |
| Expected LED Lifetime (Max) | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Certificatee | FCC, ETL, TUV-CE, RoHs | FCC, ETL, TUV-CE, RoHs | FCC, ETL, TUV-CE, RoHs |
Note:The specifications are subject to change without prior notice

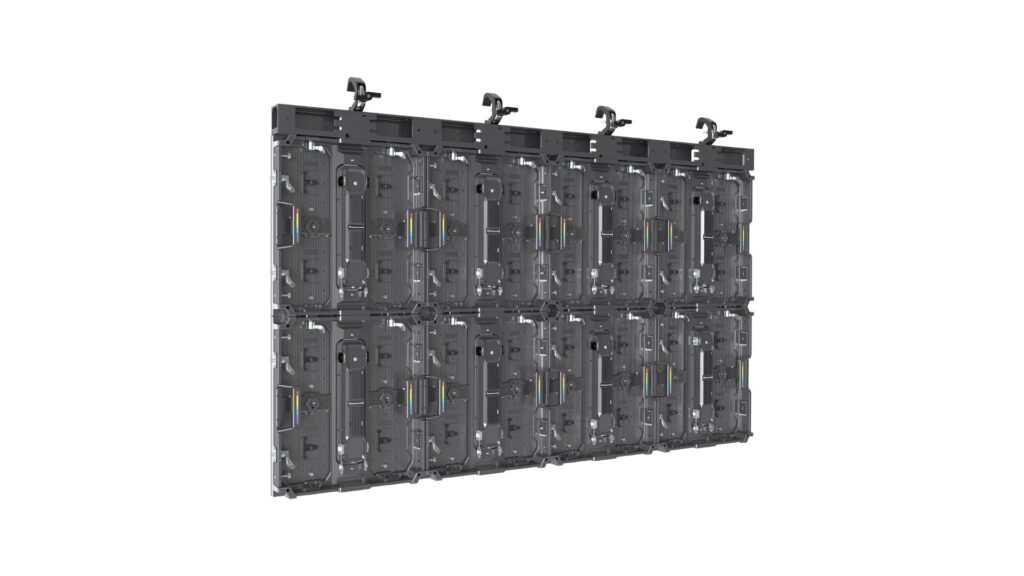

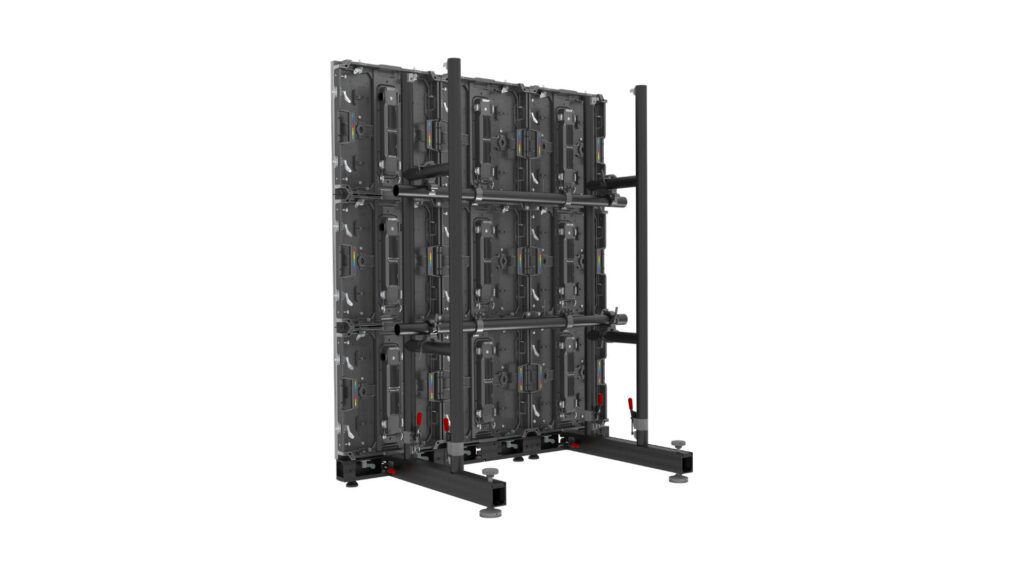

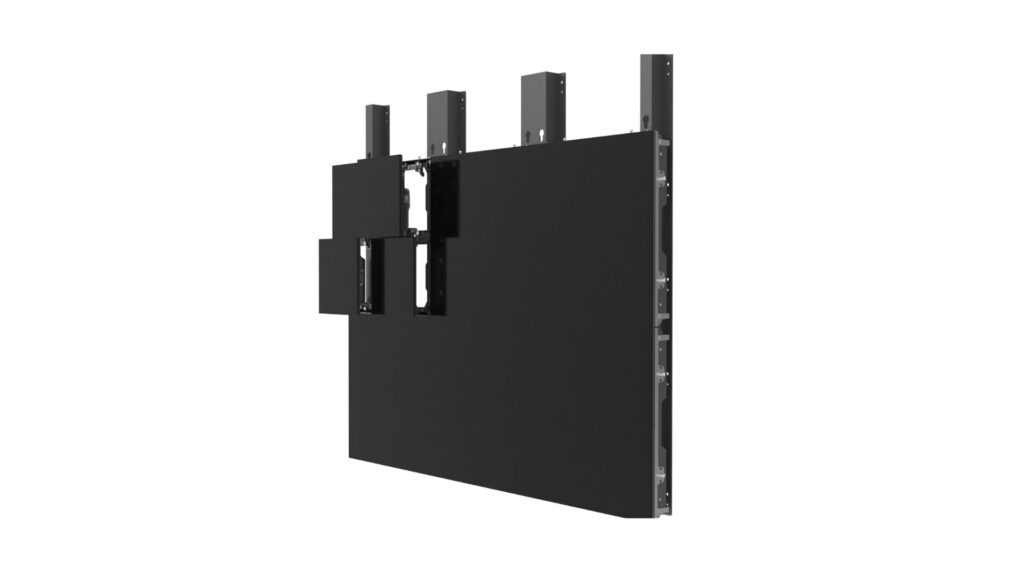

Installation Modes
Let‘s talk about your projects.
Share some details about your vision and requirements, and we can explore how our OmniTile outdoor LED solutions can bring your ideas to life. Whether it’s design flexibility, installation challenges, or performance goals, we’re here to discuss and deliver the perfect solution tailored to your needs.
Application Scenarios
Brand Launch Events
Luxury Retail Facades & Window Displays
Concert Touring & Rental Staging
Interactive LED Flooring
Luxury Villa Outdoor Advertisement
Street-level Digital Signage
