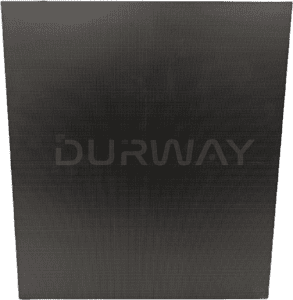

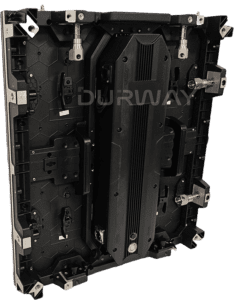

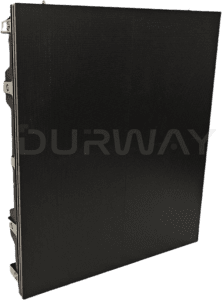

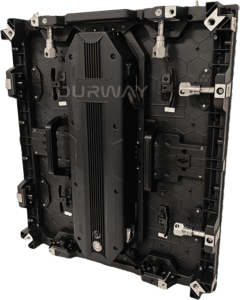

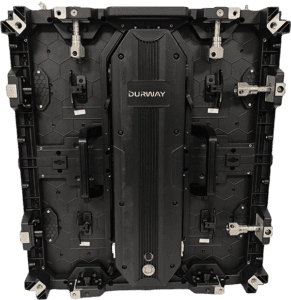

Outdoor Narrow LED Screen

Durway's VO Series Outdoor Narrow LED Screen, delivering high-definition, high-brightness visuals for impactful indoor and outdoor advertising

Outdoor Narrow LED Screen

VO Series Outdoor Narrow LED Screen, perfect solution for both indoor and outdoor high-brightness, high-definition advertising needs. Engineered with cutting-edge LED technology, this narrow-format screen delivers stunningly clear and vibrant visuals, ensuring your advertisements stand out in any environment.

Product Key Features

High brightness

Weather Resistant

Energy Efficient

100% Front access

S-latch system

Durable Die-cast aluminum cabinet

Magnets assembly

Intelligent module data storage

Special edge design protection

Outdoor Narrow LED Screen

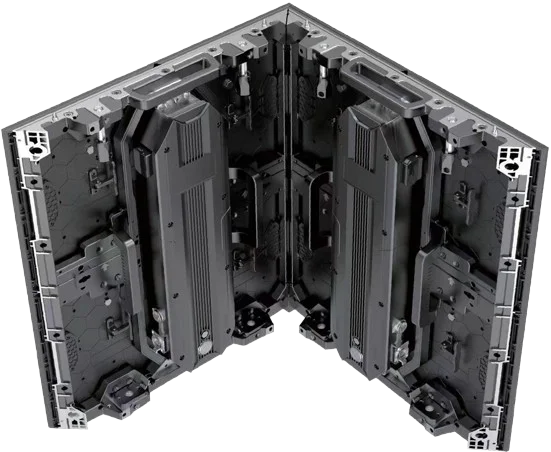

Free Splicing

The thinnest outdoor fine-pitch LED display features a sleek 45° angled design. Its die-cast modules ensure exceptional precision in alignment, delivering seamless visuals. Engineered for durability and accuracy, this innovative display is ideal for high-resolution outdoor applications, combining cutting-edge technology with robust construction for a superior viewing experience.

Outdoor Narrow LED Screen

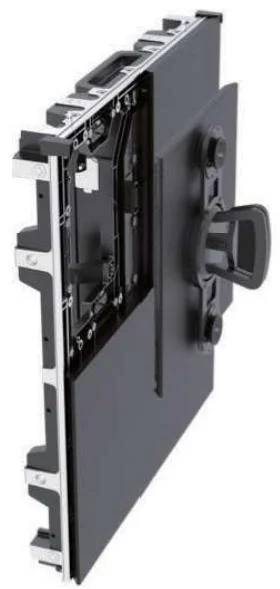

Front Access by tool

The LED cabinet features front access with a dedicated tool, a secure locking system, and magnetic installation, ensuring ease of maintenance, enhanced safety, and quick, reliable assembly.

Technical Support

Professional Services

We offer comprehensive after-sales services and technical support, including:

Custom Solution

Tailored LED solutions delivering unmatched flexibility, superior visuals, and seamless integration for diverse applications.

On-Site Installation Services

Professional installation by our experienced team to ensure your LED displays are set up correctly and efficiently.

Customer Training

We train your staff on how to maintain and replace LED screens, empowering you to handle routine upkeep with ease.

After-Sale Services

Efficient module repair service ensures quick replacements, minimizing downtime and maintaining optimal performance.

Routine inspection

Annual on-site system maintenance during the warranty ensures reliability and peak performance.

24/7 Online Support

24/7 support ensures smooth operation, addressing technical issues and inquiries anytime.

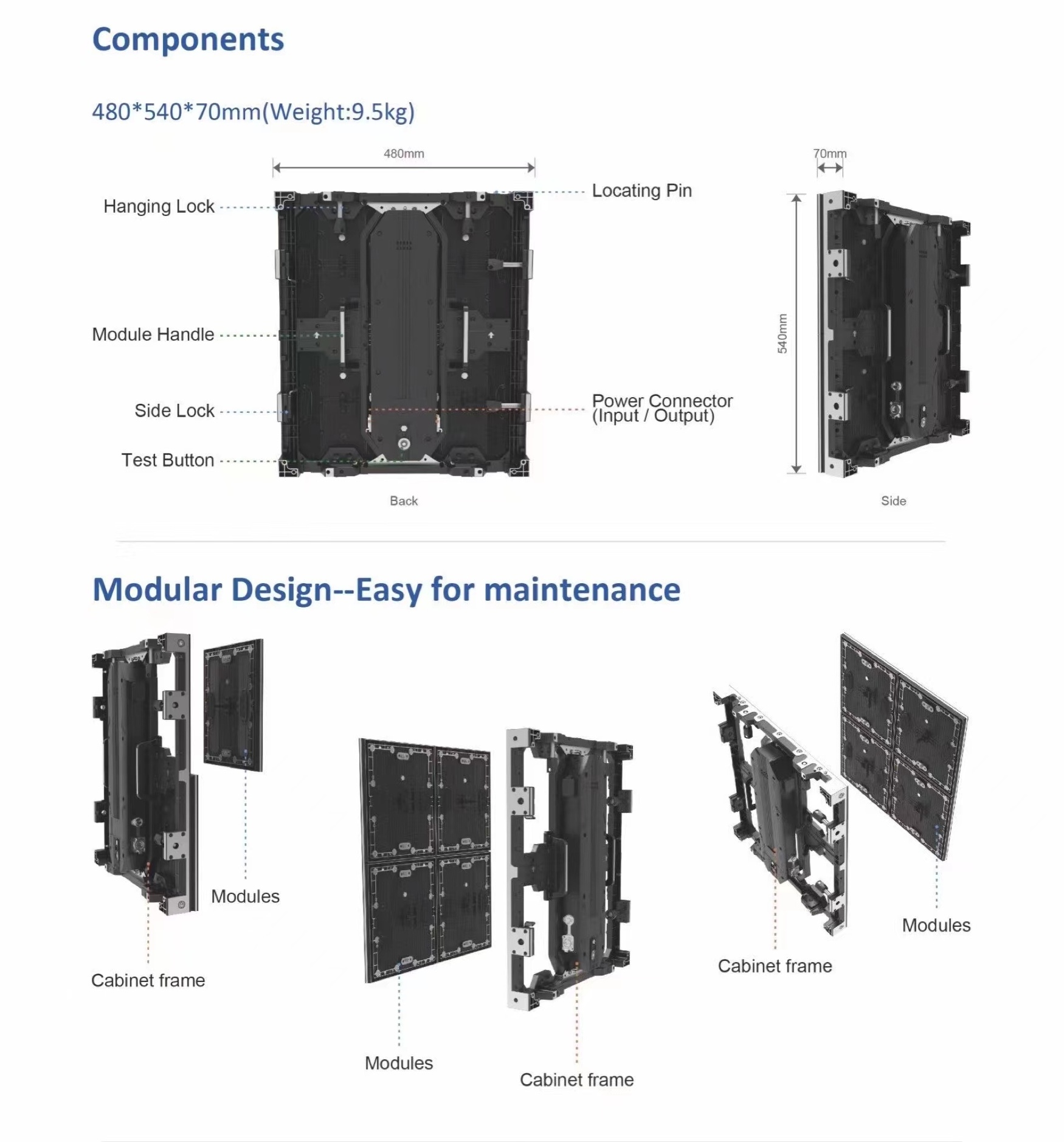

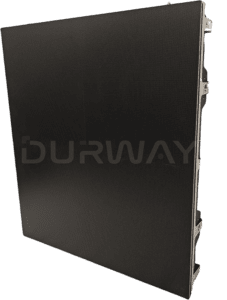

Components of led screens

The main components

The Main components include 4 pcs led modules and a cabinet frame. The modular design is very easy for maintenance.

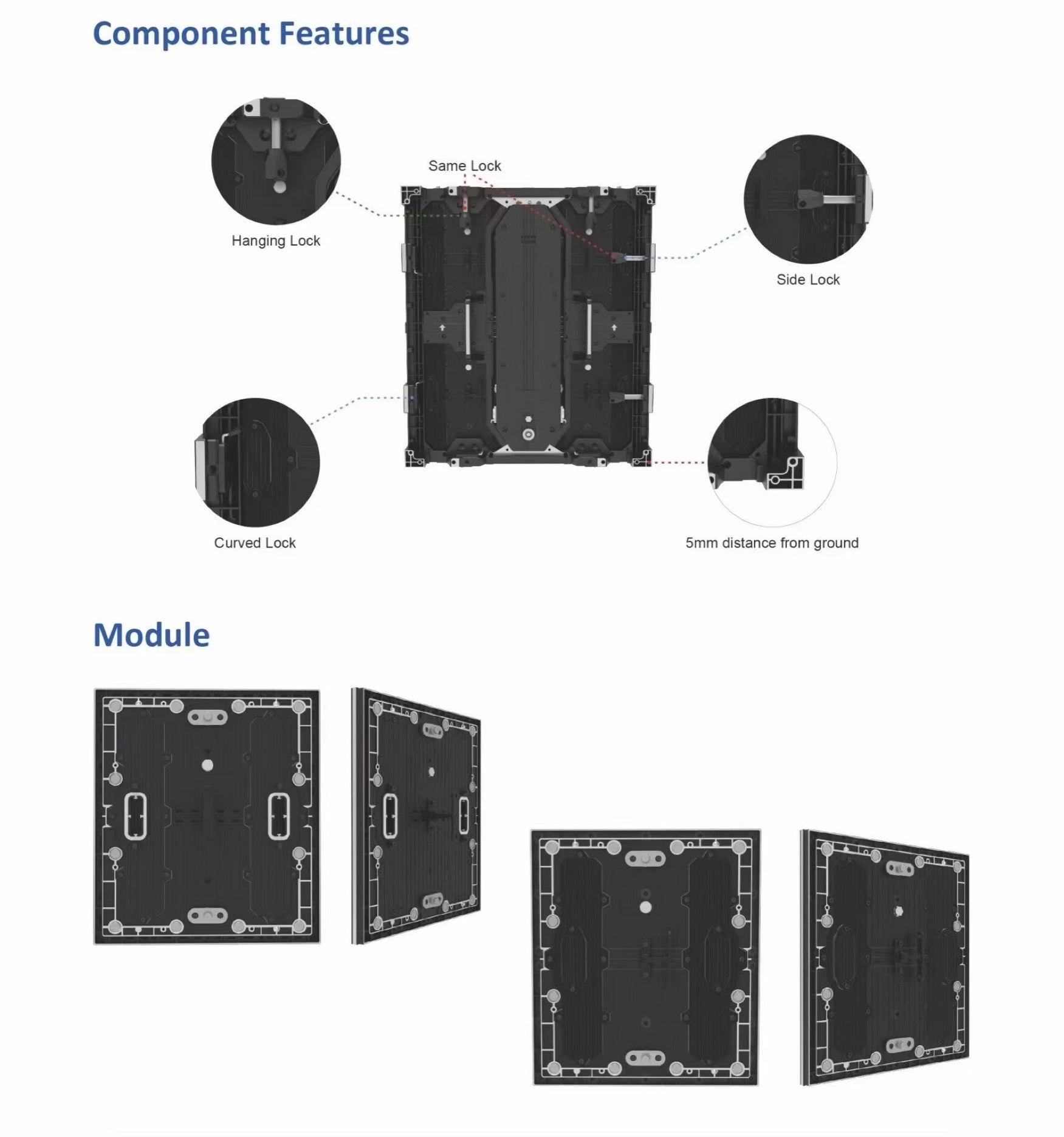

Component Features

The design is with a few locks, hanging lock, side lock, curved lock to make sure the installation flexible. As well the cabinet corner is well protected, 5mm distance from ground.

Product of led screen

Technical Specs

Model1.51.8752.5
Pixel Density(m2)444,444284,444160,000
Pixel Density(panel)115,200pixels/panel73,728pixels/panel41,472pixels/panel
LED Module Dimensions(mm)240×270240×270240×270
Panel Dimenslons (WxH×D(mm)480×540×70480×540×70480×540×70
No.of Modules Per Panel(W×H)2×22×22×2
Physical Resolution of Module (W×H)160×180128*14496×108
Physical Resolution of Panel (W×H)320×360256×288192×216
Weight Per Panel9.5kg/panel9.5kg/panel9.5kg/panel
Weight Per m²36.6kg/m²36.6kg/m²36.6kg/m²
Cabinet MaterialDie-cast AluminumDie-cast AluminumDie-cast Aluminum
ServicingFront and RearFront and RearFront and Rear
IP RatingFront IP 65,Back IP54Front IP 65,Back IP54Front IP 65,Back IP54
Brightness (after Cal.)>4000nits>4000nits>3500nits
Refresh Rate1920-3840HZ1920-3840HZ1920-3840HZ
Horizontal Viewing Angle160°160°160°
Vertical Viewing Angle160°160°160°
Soan mothod302418
Color temperature -Default8000K±500K8000K±500K8000K±500K
Color temperature-Adjustable range3500~12,000K3500~12,000K3500~12,000K
Processing14bit14bit14bit
Colours281 trillion281 trillion281 trillion
Contrast Ratio4,000:14,000:14,000:1
Max Power Consumption720 w/m²720 w/m²720 w/m²
Average Power Consumption216w/m²216w/m²216w/m²
OperatingTemp/Humidity-20~50℃/10%~90%-20~50℃/10%~90%-20~50℃/10%~90%
Storage Temp/Humidity-30~60℃/10%~95%-30~60℃/10%~95%-30~60℃/10%~95%
Expected LED Lifetime (Max)100,000 Hrs100,000 Hrs100,000 Hrs
CertificateeFCC, ETL, TUV-CE, RoHsFCC, ETL, TUV-CE, RoHsFCC, ETL, TUV-CE, RoHs

Note:The specifications are subject to change without prior notice

Let‘s talk about your projects.

Share some details about your vision and requirements, and we can explore how our outdoor LED solutions can bring your ideas to life. Whether it’s design flexibility, installation challenges, or performance goals, we’re here to discuss and deliver the perfect solution tailored to your needs.

Application Scenarios

Main Venues Suitable for Outdoor narrow LED Displays

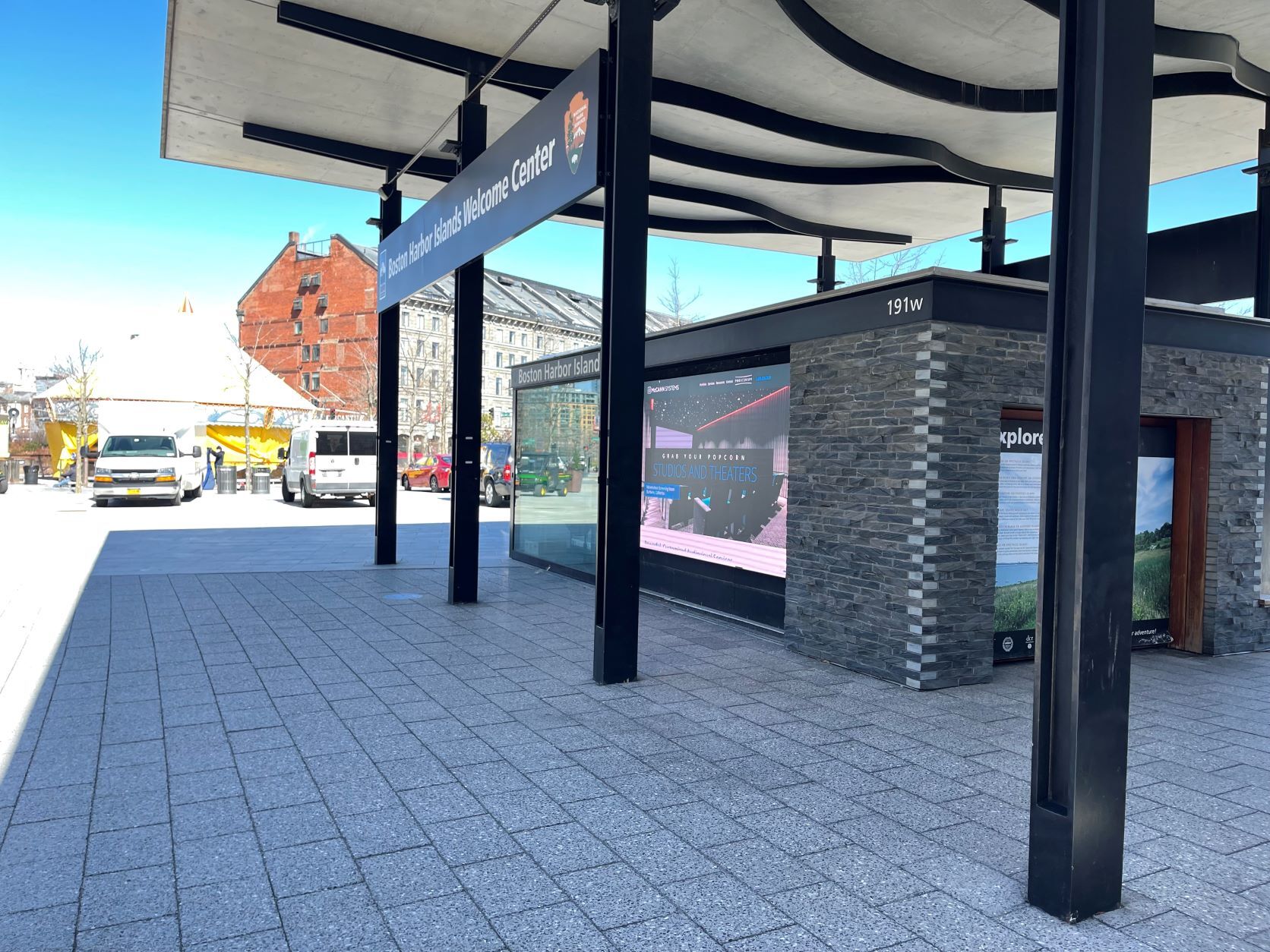

Outdoor small-pitch LED displays are versatile and used in various settings, including:

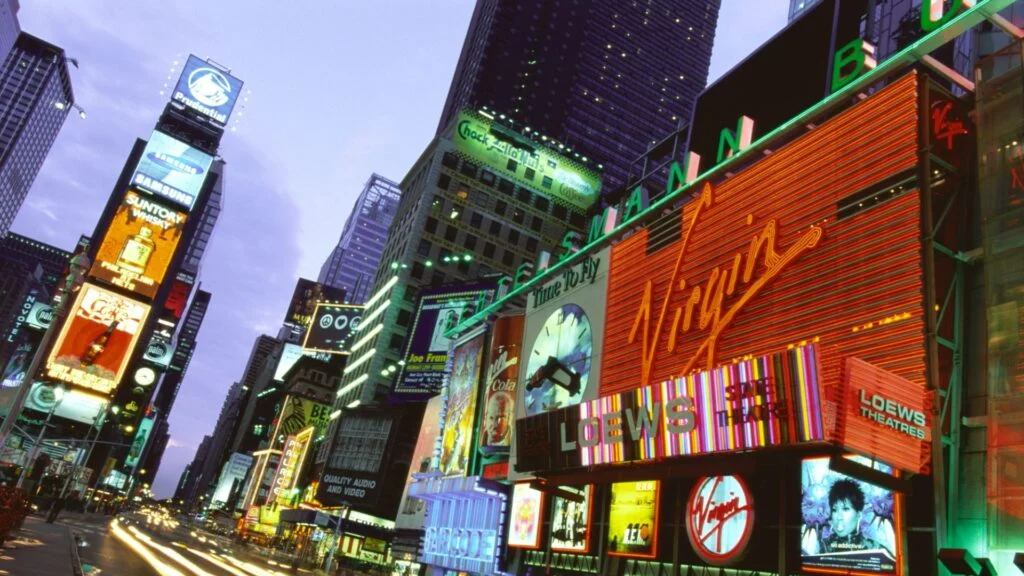

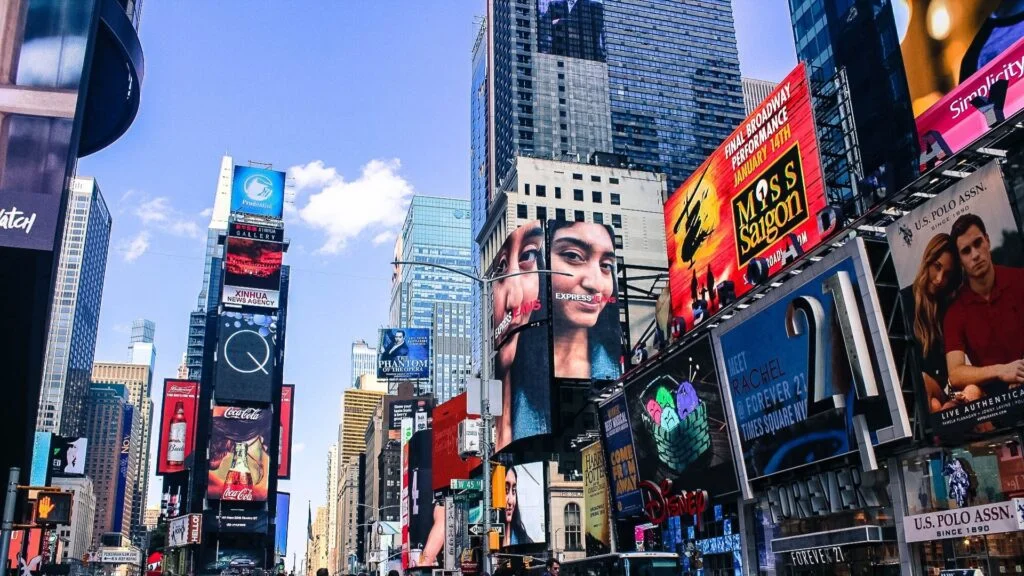

Advertising Billboards: High-resolution displays attract attention with vivid and dynamic advertisements

Retail Stores: Digital signage for storefronts showcases products and promotions effectively.

Sports Venues: Scoreboards and information displays provide clear visuals to spectators.

Applications

What key factors should be considered when purchasing outdoor narrow LED displays

.01

Pixel Pitch

Smaller pitches (1.25mm, 1.5mm) for high resolution up close;

.02

Brightness

Choose displays over 4,000 nits or higher for clear visibility in bright outdoor settings.

.03

Color Performance

Select LEDs with high contrast ratios for vivid, true-to-life images that enhance visual impact.

.04

Quality

Opt for robust materials that withstand extreme temperatures, humidity, wind, and UV exposure for long-term reliability and low maintenance.

Applications

How to Judge the Quality and Reliability of an LED Display?

.01

Build Quality and Materials

High-quality LED displays use robust, weather-resistant materials that withstand extreme temperatures, humidity, and physical stress.

.02

LED Performance and Consistency

Consistent brightness levels and accurate color reproduction indicate superior LED performance.

.03

Certifications

Look for certifications such as CE, RoHS, and FCC, which demonstrate compliance with safety and quality standards.

What are the key considerations when installing outdoor LED displays:

Secure Installation

Ensure that the mounting structures are robust and capable of supporting the weight and size of the LED

Reliable Power Source

Provide a stable and adequate power supply to meet the LED display’s energy requirements.

IP Rating

Choose LED displays with appropriate Ingress Protection (IP) ratings to ensure resistance against dust and water, safeguarding the display from harsh outdoor conditions.
